Question: 1. Design a 3-to-8 decoder using only 1-to-2 decoders. Draw your design 2. Design a 4-to-16 decoder using only 2-to-4 decoders. Draw your 3. Implement

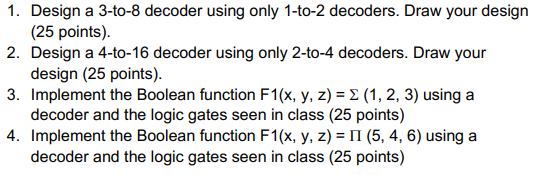

1. Design a 3-to-8 decoder using only 1-to-2 decoders. Draw your

1. Design a 3-to-8 decoder using only 1-to-2 decoders. Draw your design 2. Design a 4-to-16 decoder using only 2-to-4 decoders. Draw your 3. Implement the Boolean function F1(x, y, z)- (1, 2, 3) using a 4. Implement the Boolean function F 1(x, y, z)- (5, 4, 6) using a (25 points). design (25 points). decoder and the logic gates seen in class (25 points) decoder and the logic gates seen in class (25 points)
