Question: 1 . Determine the force in each member using the method of joints and state if the members are in tension or compression. Make sure

1 .

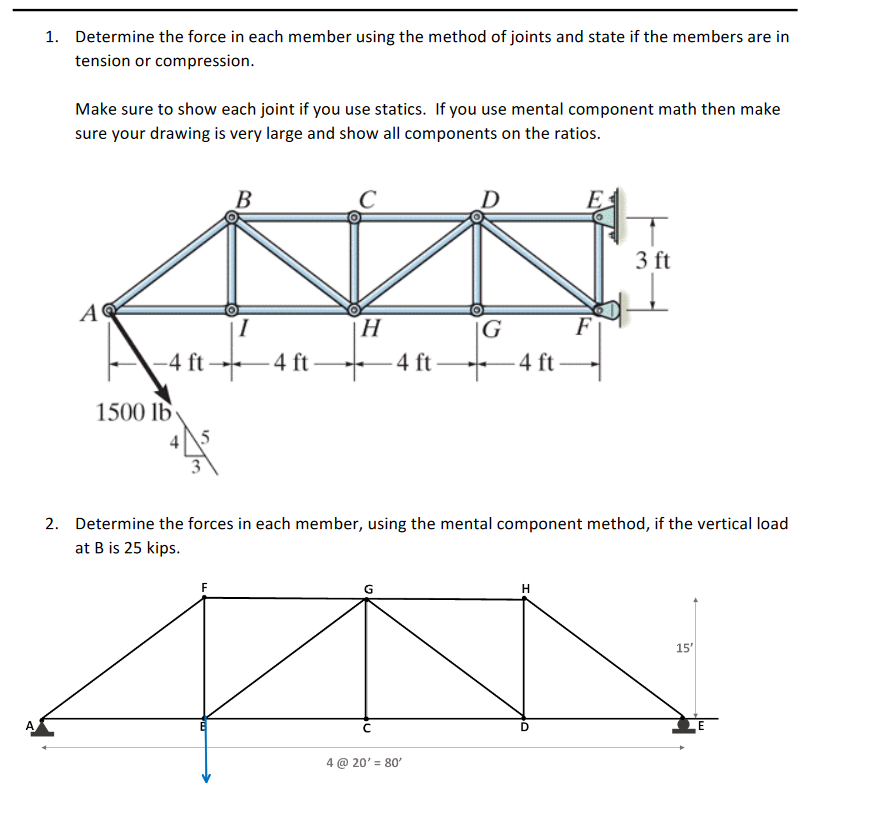

Determine the force in each member using the method of joints and state if the members are in tension or compression.

Make sure to show each joint if you use statics. If you use mental component math then make sure your drawing is very large and show all components on the ratios.

2 .

Determine the forces in each member, using the mental component method, if the vertical load at

\ (

\)

25

kips.

1 . Determine the force in each member using the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

bec 2-STATICS OF RIGID BODIES PROBLEMS: 1. Determine the force in each member of the Howe roof truss shown. State whether each member is in tension or compression. Limit your answers to two decimal...

Trusses 1. Determine the force in each member of the truss and indicate if the member is in tension or compression 20 400 N 0.6 m 0.8 m T17 0.8 m 77 Trusses 3. For the sign truss shown below: a. Use...

PRACTICE QUESTION 5 Consider the truss below. Determine the force in each member of the truss using the method of joints and state if the members are in tension or compression. | F G F | = 2 1 0 k N...

Consider the truss below. Determine the force in each member of the truss using the method of joints and state if the members are in tension or compression. -2 m B 30 kN -2 m E 30 kN -2 m 2m 40 kN...

Use the method of joints to determine the force in each member of the truss below, and indicate whether the members are in tension or compression. Note: Member naming system is based on the letter...

CoursHeroTranscribedText: 10.8 kips 10.8 kips PROBLEM 6.5 22.5 ft 35 ft Using the method of joints, determine the force in each member B C of the truss shown. State whether each member is in tension...

using the HIGHLIGHTED VALUES, please answer the problem showing calculations 1. Determine the force in each member of the Pratt truss, and state if the members are in tension or compression. 2 m P1 =...

ENGG 202 - Engineering Statics - Winter 2023 SCHULICH Worksheet 7 - Truss Analysis selection. e) Select a joint that you would like to start with to determine the members forces. Justify your Answer:...

Determine the force in each member of the truss with the method of joints and state if the members are in tension (T) or compression (C). Set d = 1 m and P = 10 kN. (Hint: Look for zero- force...

For this problem, create at MATLAB script called statics.m and a diary called statics. txt . The plane truss shown below has 1 3 members ( the numbered lines ) and 8 joints ( the numbered circles ) ....
