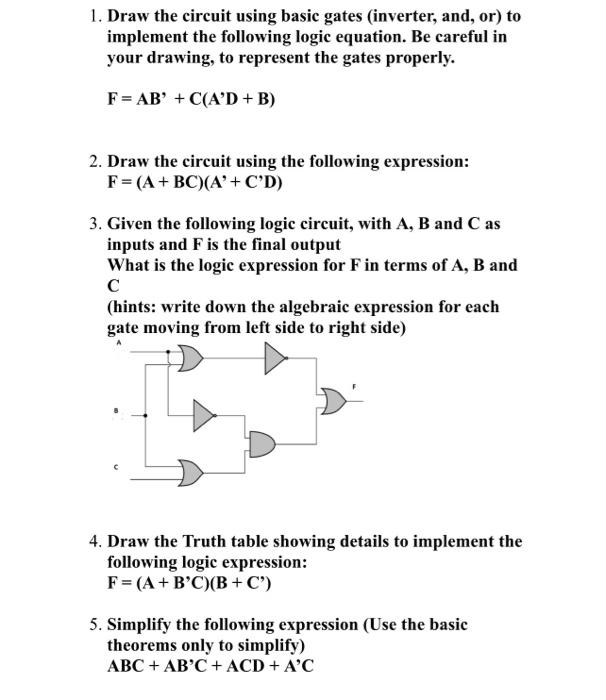

1. Draw the circuit using basic gates (inverter, and, or) to implement the following logic equation. Be careful in your drawing, to represent the gates properly. F=AB+C(AD+B) 2. Draw the circuit using the following expression: F=(A+BC)(A+CD) 3. Given the following logic circuit, with A,B and C as inputs and F is the final output What is the logic expression for F in terms of A,B and C (hints: write down the algebraic expression for each gate moving from left side to right side) 4. Draw the Truth table showing details to implement the following logic expression: F=(A+BC)(B+C) 5. Simplify the following expression (Use the basic theorems only to simplify) ABC+ABC+ACD+AC
