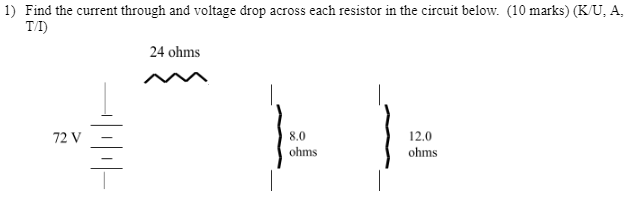

Question: 1) Find the current through and voltage drop across each resistor in the circuit below. (10 marks) (K/U, A, T/I) 24 ohms 72 V 8.0

1) Find the current through and voltage drop across each resistor
in the circuit below. (10 marks) (K/U, A, T/I) 24 ohms 72

1) Find the current through and voltage drop across each resistor in the circuit below. (10 marks) (K/U, A, T/I) 24 ohms 72 V 8.0 12.0 ohms ohms

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
