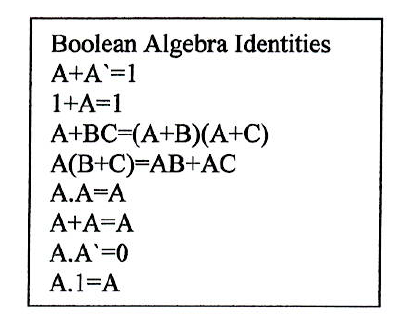

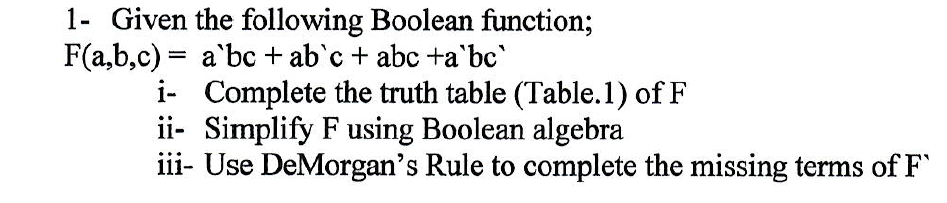

Question: 1- Given the following Boolean function; F(a,b,c)- abc+ ab'c+ abc +a'bc i- Complete the truth table (Table.1) of F ii- Simplify F using Boolean algebra

1- Given the following Boolean function; F(a,b,c)- abc+ ab'c+ abc +a'bc

i- Complete the truth table (Table.1) of F ii- Simplify F using

1- Given the following Boolean function; F(a,b,c)- abc+ ab'c+ abc +a'bc i- Complete the truth table (Table.1) of F ii- Simplify F using Boolean algebra ii- Use DeMorgan's Rule to complete the missing terms of F

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
