Question: 1. Implement the function f(w1,w2,w3)=m(0,1,3,4,6,7) by using a 3 -to-8 binary decoder and an OR gate. Results and D 2. Implement in Verilog an 8-to-3

1. Implement the function f(w1,w2,w3)=m(0,1,3,4,6,7) by using a 3 -to-8 binary

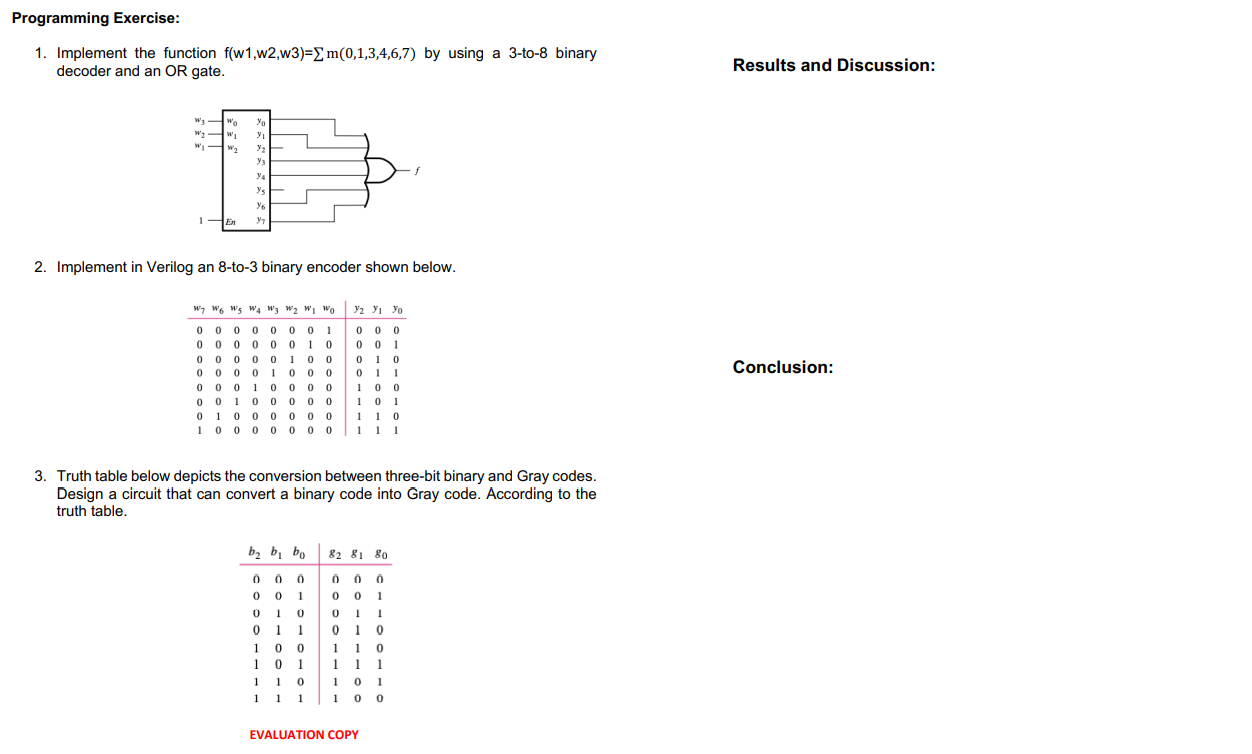

1. Implement the function f(w1,w2,w3)=m(0,1,3,4,6,7) by using a 3 -to-8 binary decoder and an OR gate. Results and D 2. Implement in Verilog an 8-to-3 binary encoder shown below. Conclusion: 3. Truth table below depicts the conversion between three-bit binary and Gray codes. Design a circuit that can convert a binary code into Gray code. According to the truth table. EVALUATION COPY
