Question: 1. In Figure 1 , the switch S has been closed for a long time and the circuit carries a constant current. S 500 0

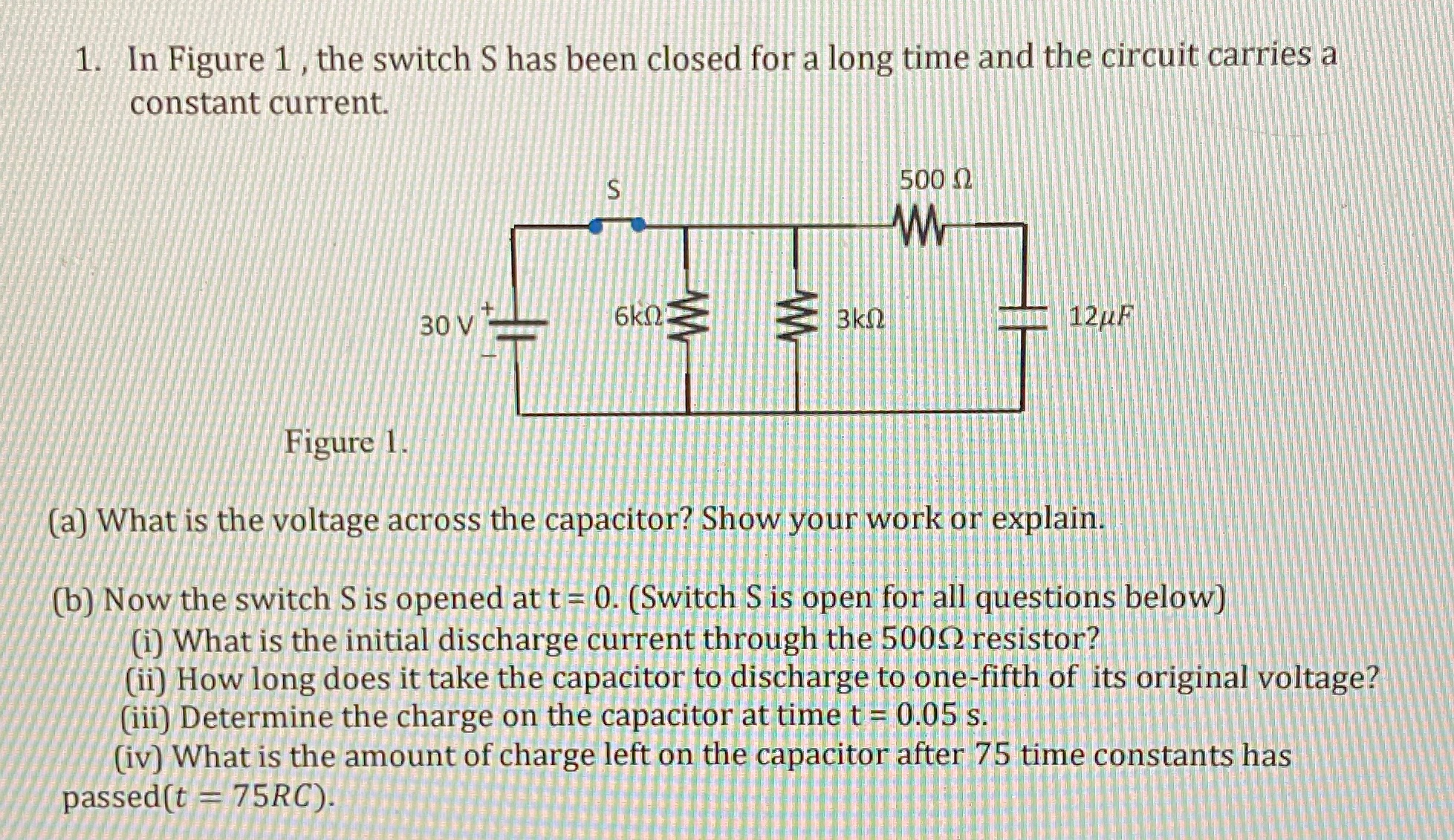

1. In Figure 1 , the switch S has been closed for a long time and the circuit carries a constant current. S 500 0 30 V 6k0 12OF Figure 1. (a) What is the voltage across the capacitor? Show your work or explain. (b) Now the switch S is opened at t = 0. (Switch S is open for all questions below) (i) What is the initial discharge current through the 50092 resistor? (ii) How long does it take the capacitor to discharge to one-fifth of its original voltage? (iii) Determine the charge on the capacitor at time t = 0.05 s. (iv) What is the amount of charge left on the capacitor after 75 time constants has passed (t = 75RC)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
