Question: ( 1 point ) In the circuits below, R 1 = 3 1 , R 2 = 6 0 , R 3 = 4 9

(1 point)
In the circuits below, R1=31,R2=60,R3=49,V1=13V,V2=16V,i1=4.4A, and i2=-3.2A.

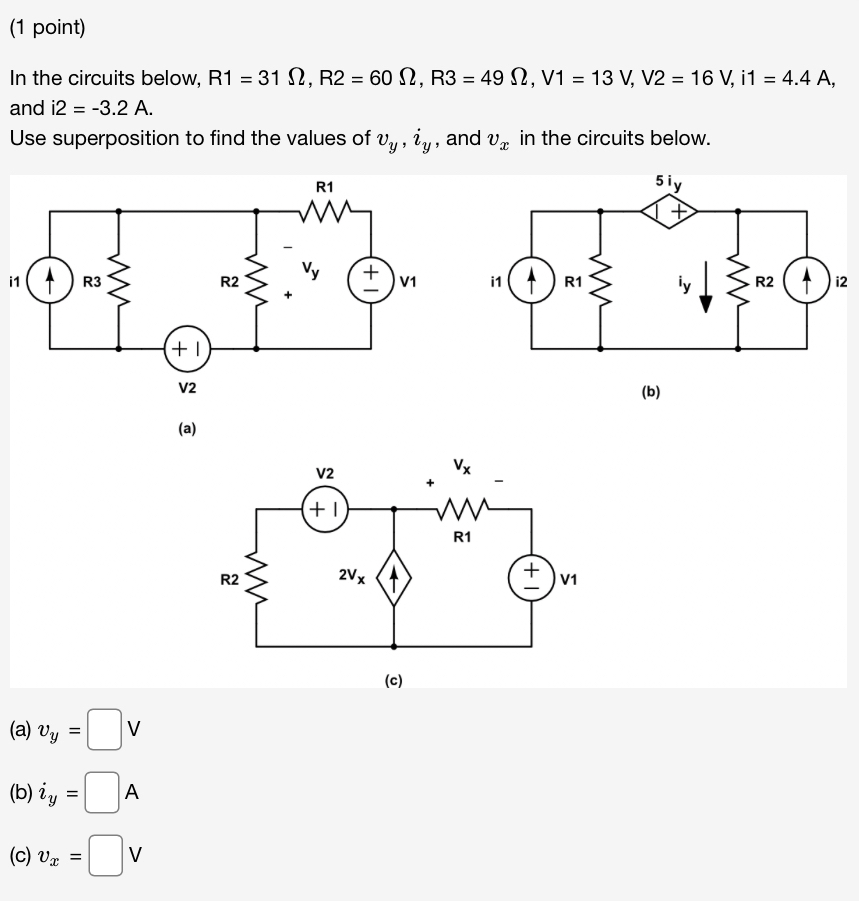

Use superposition to find the values of vy,iy, and vx in the circuits below.
(a)
(c)
(a)vy=,V
(b)iy=,A
(c)vx=,V
( 1 point ) In the circuits below, R 1 = 3 1 , R

Step by Step Solution

There are 3 Steps involved in it
