Question: 1. Preceding activity Activity A B D E F G B AC B D E, F Activity duration 6 3 1 2 5 2 6

1. Preceding activity Activity A B D E F G B AC B

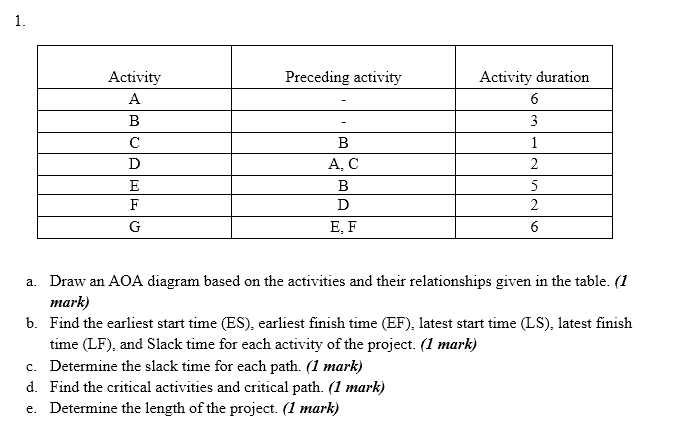

1. Preceding activity Activity A B D E F G B AC B D E, F Activity duration 6 3 1 2 5 2 6 a. Draw an AOA diagram based on the activities and their relationships given in the table. (1 mark) b. Find the earliest start time (ES), earliest finish time (EF), latest start time (LS), latest finish time (LF), and Slack time for each activity of the project. (1 mark) c. Determine the slack time for each path. (1 mark) d. Find the critical activities and critical path. (1 mark) e. Determine the length of the project. (1 mark)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related General Management Questions!

1. Preceding activity Activity A C D E F G A B A, B C, D E C, E, F Activity duration 6 3 1 2 5 2 6 a. Draw an AON diagram based on the activities and their relationships given in the table. (1 mark)...

1. Preceding activity Activity A B D E F G A B A, B CD E C, E, F Activity duration 6 3 1 2 5 2 6 a. Draw an AON diagram based on the activities and their relationships given in the table. (1 mark) b....

Create a Gantt Chart from the description below (upload file, screen shot or photo of finished chart). If there is a critical path, highlight this or write out the specific critical path....

Chapter 4: Project Management (CPM & PERT TECHNIQUES) QUESTION 1 A network consists of the following list. Times are given in weeks. Preceding Activity A B C D E F G H I J K Duration 9 2 12 5 6 A A A...

PDF Individual Assignment-2.pdf + c (1 File C:/Users/HP/Downloads/Individual%20Assignment-2.pdf : 2 of 2 Q + ID Page view | A Read aloud | Draw Highlight Erase A A 19 4. The chief engineer of firm...

Draw an AON diagram based on the activities and their relationships given in the table. (1 mark) Find the earliest start time (ES), earliest finish time (EF), latest start time (LS), latest finish...

plz answer a,b,c part in clearly. 4. The chief engineer of firm XYZ is responsible for supervising the construction work of a road. He has identified the activities and their durations for each stage...

Subject: MGT 314 - Operations Managemen 4. The chief engineer of firm XYZ is responsible for supervising the construction work of a road. He has identified the activities and their durations for each...

4. The chief engineer of firm XYZ is responsible for supervising the construction work of a road. He has identified the activities and their durations for each stage of operation. Preceding...
