Question: [ 1 ] Problem statement: Determine the moment ( M ) that will produce a maximum stress of 1 0 ksi on the

[1] Problem statement: Determine the moment \( M \) that will produce a maximum stress of 10 ksi on the cross section

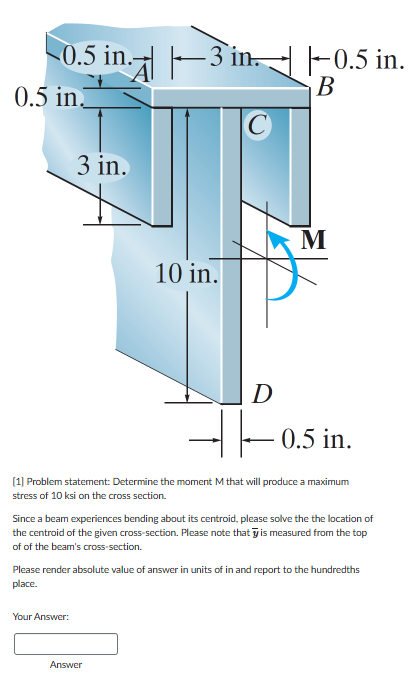

Since a beam experiences bending about its centroid, please solve the the location of the centroid of the given cross-section. Please note that \(\bar{y}\) is measured from the top of of the beam's cross-section.
Please render absolute value of answer in units of in and report to the hundredths place.
Your Answer:
[ 1 ] Problem statement: Determine the moment \ (

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
