Required information

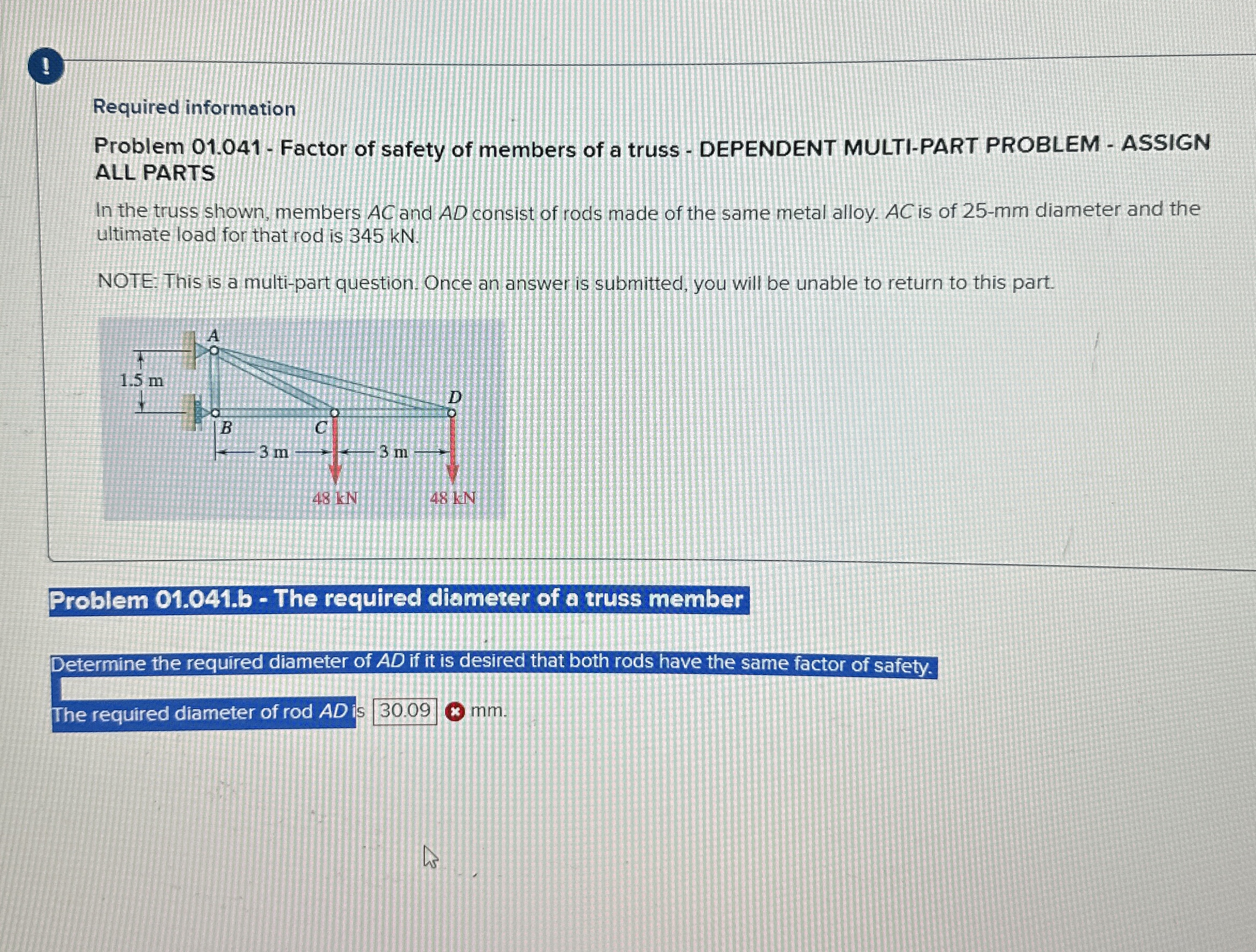

Problem $01\mathrm{.}041-$ Factor of safety of members of a truss $-$ DEPENDENT MULTI$-$PART PROBLEM $-$ ASSIGN ALL PARTS

In the truss shown, members $AC$ and $AD$ consist of rods made of the same metal alloy. $AC$ is of $25-mm$ diameter and the ultimate load for that rod is $345$ kN $.$

NOTE: This is a multi$-$part question. Once an answer is submitted, you will be unable to return to this part.

Problem $01\mathrm{.}041.$b $-$ The required diameter of a truss member

Determine the required diameter of $AD$ if it is desired that both rods have the same factor of safety.

The required diameter of rod $AD$ is $30\mathrm{.}09$ mm$.$
