Question: 1 s i n ( 4 t ) V . Ihe signal is distorted so that there are also 3 in and 4 rth harmonic

1sin(4t)V. Ihe signal is distorted so that there are also 3 in and 4 rth harmonic components generated. What is the total harmonic distortion factor in our case?

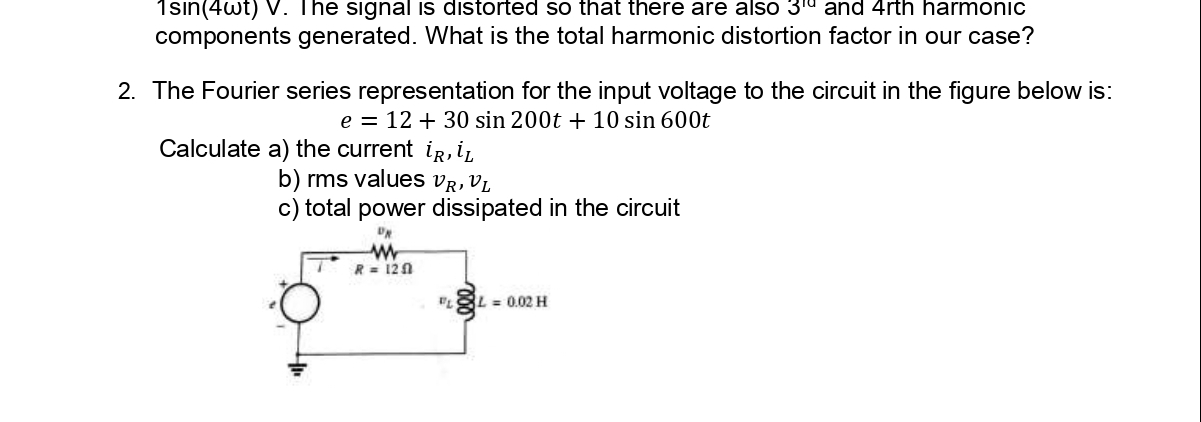

2. The Fourier series representation for the input voltage to the circuit in the figure below is:
e=12+30sin200t+10sin600t
Calculate a) the current iR,iL
b) rms values vR,vL
c) total power dissipated in the circuit
1 s i n ( 4 t ) V . Ihe signal is distorted so

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
