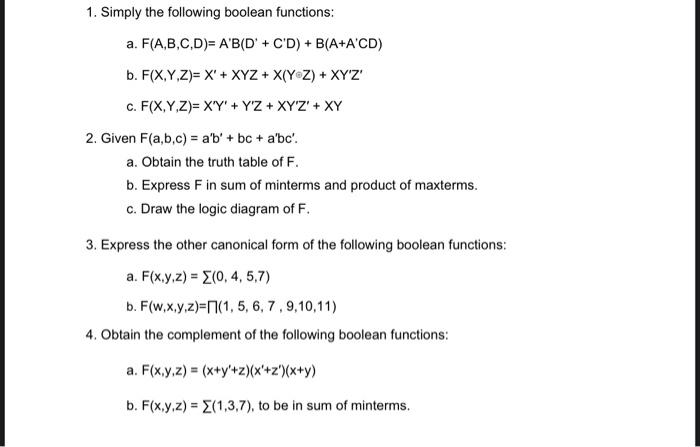

Question: 1. Simply the following boolean functions: a. F(A,B,C,D)= A'B(D' + C'D) + B(A+A'CD) b. F(X,Y,Z)= X' + XYZ + X(Y Z) + XYZ' c. F(X,Y,Z)=

1. Simply the following boolean functions: a. F(A,B,C,D)= A'B(D' + C'D) + B(A+A'CD) b. F(X,Y,Z)= X' + XYZ + X(Y Z) + XYZ' c. F(X,Y,Z)= X'Y' + Y'Z + XY'Z' + XY 2. Given F(a,b,c) = a'b' + bc + a'bc! a. Obtain the truth table of F. b. Express F in sum of minterms and product of maxterms. c. Draw the logic diagram of F. 3. Express the other canonical form of the following boolean functions: a. F(x.y,z) = (0,4,5,7) b. F(w,x,y,z)=1(1,5,6,7,9,10,11) 4. Obtain the complement of the following boolean functions: a. F(x,y,z) = (x+y+z)(x'+z')(x+y) b. F(x,y,z) = (1,3,7), to be in sum of minterms

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

Plz help me in digital logic design, i have to submit today Assignment 2 Due: 5 Mar 2021 1. Simply the following boolean functions: a. F(A,B,C,D)= A'B(D' + C'D) + B(A+A'CD) b. F(X,Y,Z)= X' + XYZ +...

Assignment 2 Due: 2 Mar 2021 1. Simply the following boolean functions: a. F(A,B,C,D)= A'B(D' + C'D) + B(A+A'CD) b. F(X,Y,Z)= X' + XYZ + X(YZ) + XYZ c. F(X,Y,Z)= X'Y' + Y'Z + XY'Z' + XY 2. Given...

1. Simply the following boolean functions: a. F(A,B,C,D)= A'B(D' + CD) + B(A+A'CD) b. F(X,Y,Z)= X' + XYZ + X(Y@Z) + XY'Z' c. F(X,Y,Z)= X'Y' + Y'Z + XY'Z' + XY 2. Given F(a,b,c) = a'b' + bc + a'bc'....

1. Simply the following boolean functions: a. F(A,B,C,D)= AB(D + CD) + B(A+ACD) b. F(X,Y,Z)= X + XYZ + X(YZ) + XYZ c. F(X,Y,Z)= XY + YZ + XYZ + XY 2. Given F(a,b,c) = ab + bc + abc. a. Obtain the...

1. Simply the following boolean functions: a. F(A,B,C,D)= A'B(D' + C'D) + B(A+A'CD) b. F(X,Y,Z)= X' + XYZ + X(YZ) + XY'Z' c. F(X,Y,Z)= X'Y' + Y'Z + XY'Z' + XY 2. Given F(a,b,c) = a'b' + bc + a'bc'....

digital logic design please help me with details answers 1. Simply the following boolean functions: a. F(A,B,C,D)= A'B(D' + C'D) + B(A+A'CD) b. F(X,Y,Z)= X' + XYZ + X(YZ) + XY'Z' c. F(X,Y,Z)= X'Y' +...
