Question: 1 . The beam is under the given loads shown. It is a 1 8 3 5 wide flange steel beam made of ASTM 9

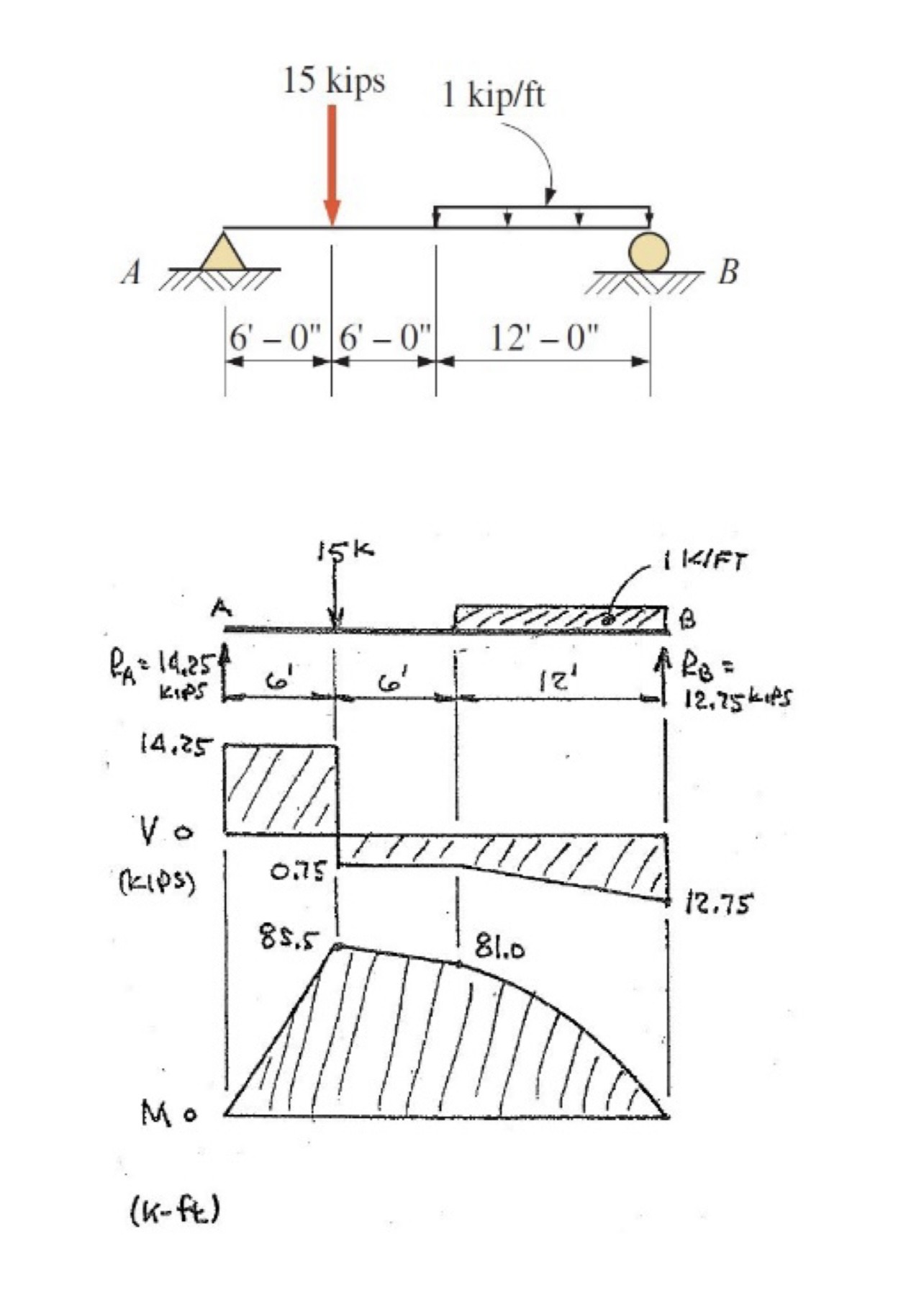

1. The beam is under the given loads shown. It is a 1835 wide flange steel beam made of ASTM 992 steel. Please determine:
1) What is the allowable bending stress, allow [si]
2) What is the allowable shear stress, allow [si]
3) What is the actual maximum bending stress, max [si]
4) What is the actual maximum shear stress, max [si]
5) Will the beam fail at bending?
6) Will the beam fail at shearing?
Please, do NOT use A.I. to solve, Thank You!
