Question: HW 0 5 . 1 - The machine shown is a riveter. The motion of the driving piston A moves the three members in order

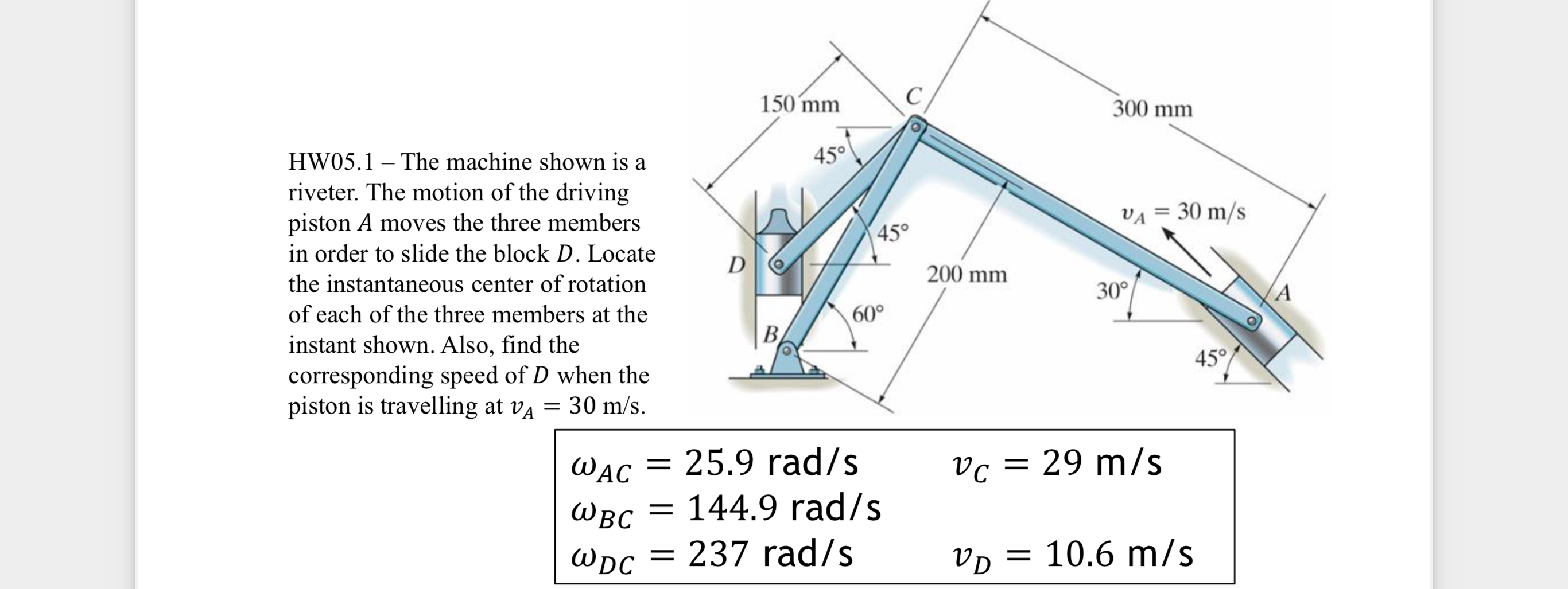

HW05.1- The machine shown is a riveter. The motion of the driving piston A moves the three members in order to slide the block D. Locate the instantaneous center of rotation of each of the three members at the instant shown. Also, find the corresponding speed of D when the piston is travelling at vA=30 m/s
please use Instantaneous center of Rotation!!!!!
HW 0 5 . 1 - The machine shown is a riveter. The

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
