Question: 1 . ) The influence line for the internal shear at C in the beam shown is given. Determine the worst - case shear at

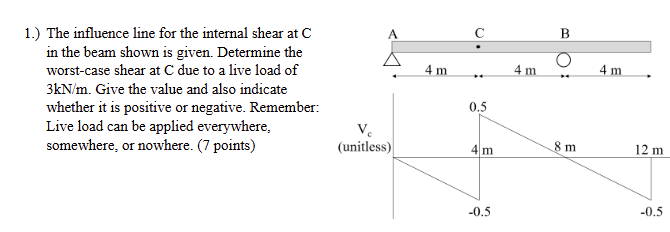

1.) The influence line for the internal shear at C in the beam shown is given. Determine the worst-case shear at C due to a live load of \(3\mathrm{kN}/\mathrm{m}\). Give the value and also indicate whether it is positive or negative. Remember: Live load can be applied everywhere, somewhere, or nowhere. (7 points)
1 . ) The influence line for the internal shear

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
