Question: (1) The width of the base is specified with a basic dimension of 60. What are the low and high limits of this dimension? Please

(1) The width of the base is specified with a

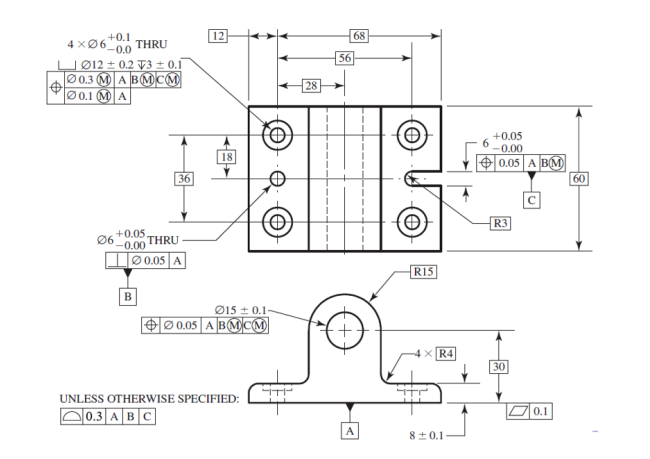

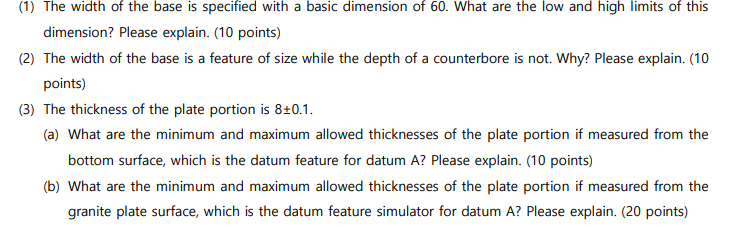

(1) The width of the base is specified with a basic dimension of 60. What are the low and high limits of this dimension? Please explain. (10 points) (2) The width of the base is a feature of size while the depth of a counterbore is not. Why? Please explain. (10 points) (3) The thickness of the plate portion is 8+0.1. (a) What are the minimum and maximum allowed thicknesses of the plate portion if measured from the bottom surface, which is the datum feature for datum A? Please explain. (10 points) (b) What are the minimum and maximum allowed thicknesses of the plate portion if measured from the granite plate surface, which is the datum feature simulator for datum A? Please explain. (20 points) +0.1 68 56 4x06-0.0 THRU 12 0.2 53 : 0.1 0.3 M A BMCM 0.1 MA 28 +0.05 6 0.00 0.05 A BM 18 36 60 R3 06 +0.05 THRU -0.00 10.05 A R15 15 0.1 0.05 A BMCM R4 30 UNLESS OTHERWISE SPECIFIED: 0.3 ABC 0.1 A 8 +0.1
