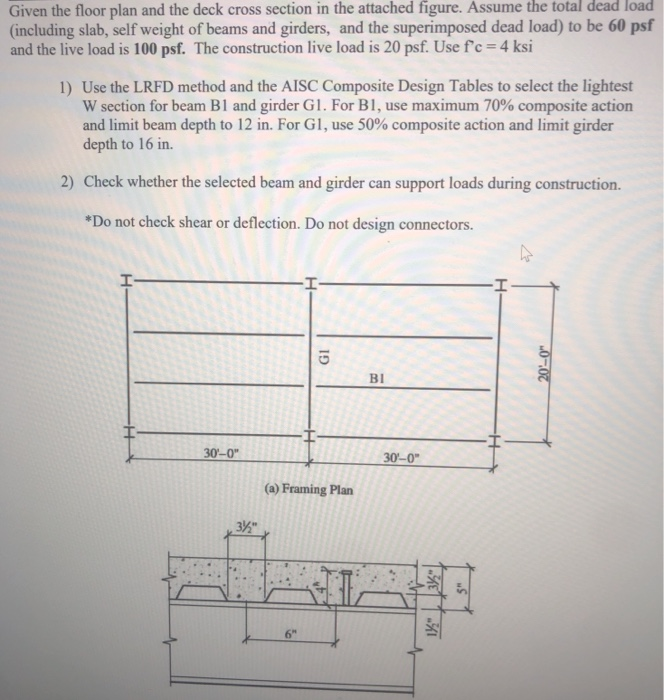

Question: 1 ) Use the LRFD method and the AISC Composite Design Tables to select the lightest W section for beam B 1 and girder G

1) Use the LRFD method and the AISC Composite Design Tables to select the
lightest W section for beam B1 and girder G1. For B1, use maximum 70%
composite action and limit beam depth to 12 in. For G1, use 50% composite
action and limit girder depth to 16 in.
2) Check whether the selected beam and girder can support loads during construction.
*Do not check shear or deflection. Do not design connectors.
1 ) Use the LRFD method and the AISC Composite
