Question: 1. Using boolean algebra simplify the following equation. 2. Write the boolean expression for the following logic diagram. (Do not simplify) 3. Simplify and write

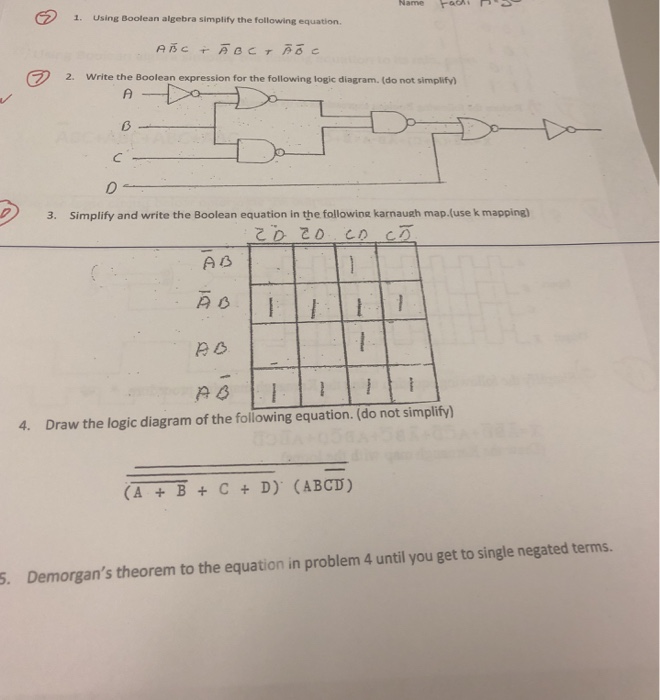

1. Using boolean algebra simplify the following equation.

2. Write the boolean expression for the following logic diagram. (Do not simplify)

3. Simplify and write the boolean equation in the following karnaugh map. (Use k mapping).

4. Draw the logic diagram of the following equation. (Do not simplify)

5. Demorgans theorem to the equation in problem 4. Until you get to single negated terms.

1. Using Boolean algebra simplify the following equation. 2 Write the Boolean expression forthe following logic diagram. (do not simplify) 0 3.Simplify and write the Boolean equation in the following karnaugh map.(use k mapping) A B A 0 AI 4. Draw the logic diagram of the following equation. (do not simplify) (A + B + C + D)' (ABCD) 5. Demorgan's theorem to the equation in problem 4 until you get to single negated terms

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

solve 1,2,3 with workout please SN 700N 8 1645 1. Using Boolean algebra, simplify the following expressions. F = ABC + (A + B + C) + ABCD F = ABCD + AB(CD) + (ABCD F = XTZ + XYZ + WXY+WXY+WXY F = A +...

SN 7400N 7645 1. Using Boolean algebra, simplify the following expressions. F1 = BC + (A + B + 7) + ABCD F2 = ABCD + AB(CD) + (AB) CD F3 = X7Z + XYZ + WXY + WTY + WXY F4 = A + B[C+ D(B + 7)] Figure 1...

Using Boolean algebra, simplify the following expressions. Build the Truth Table for F 1 and F 4 functions. Draw the circuit diagram for both unsimplified and simplified equations of F 2 andF 3 How...

a) Given the following logic circuit B X (1) Identify the two logic gates used in the circuit. [lm] Get the Boolean expression for x [20] b) Give the complete truth table for XOR gate with 2 inputs...

Question 1 - Using Boolean algebra postulates prove that + = . Question 2 - What are logic gates? Write down the classification of logic gates. Question 3 - What are Min - terms and Max - terms?...

Question 1 - Using Boolean algebra postulates prove that + = . Question 2 - What are logic gates? Write down the classification of logic gates.Question 3 - What are Min - terms and Max - terms? Write...

Figure 2 shows the logic diagram of a circuit. a ) In the space below, derive the Boolean function and the truth table for the logic circuit Figure 2 . ( Insert function and truth table here. Create...

digital logic desgin CS 230 Digital Logic Design Assignment 1: Lab Work 2 (Week 6) [Total: 2 marks] Objectives: 1. To be able to design logic circuit using Universal NAND and NOR gate. Questions:...

Digital Logic Design Assignment 1: Lab Work 2 (Week 6) Objectives: 1. To be able to design logic circuit using Universal NAND and NOR gate. Questions: Given the timing diagram given below, answer the...
