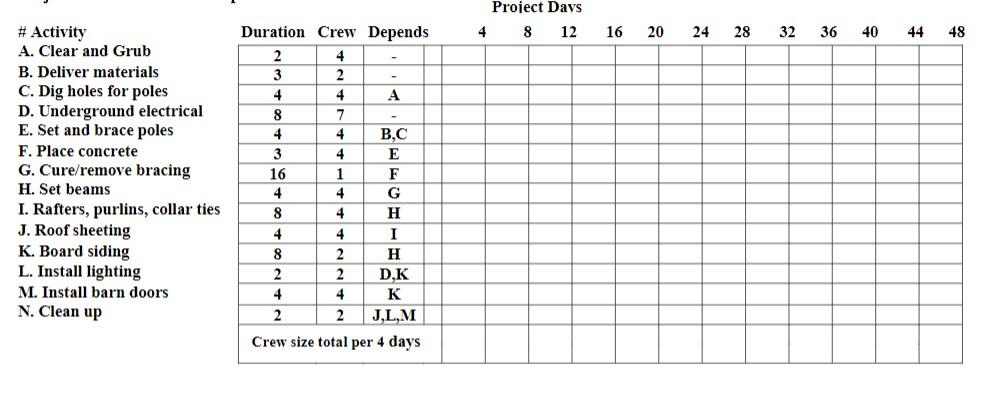

1. Using the chart above create a Gantt chart that shows the early start schedule. a. What is the maximum required crew size and on which days does that occur?

2. Modify the Gantt chart in the space above by moving an activity so that you do not exceed 12-person crew per 4 days. In addition, show which activities you had to move:

3. Draw an activity on arrow diagram showing early event times, late event times, and the critical path.

(please make it understandable)

\# Activity A. Clear and Grub B. Deliver materials C. Dig holes for poles D. Underground electrical E. Set and brace poles F. Place concrete G. Cure/remove bracing H. Set beams I. Rafters, purlins, collar ties J. Roof sheeting K. Board siding L. Install lighting M. Install barn doors N. Clean up
