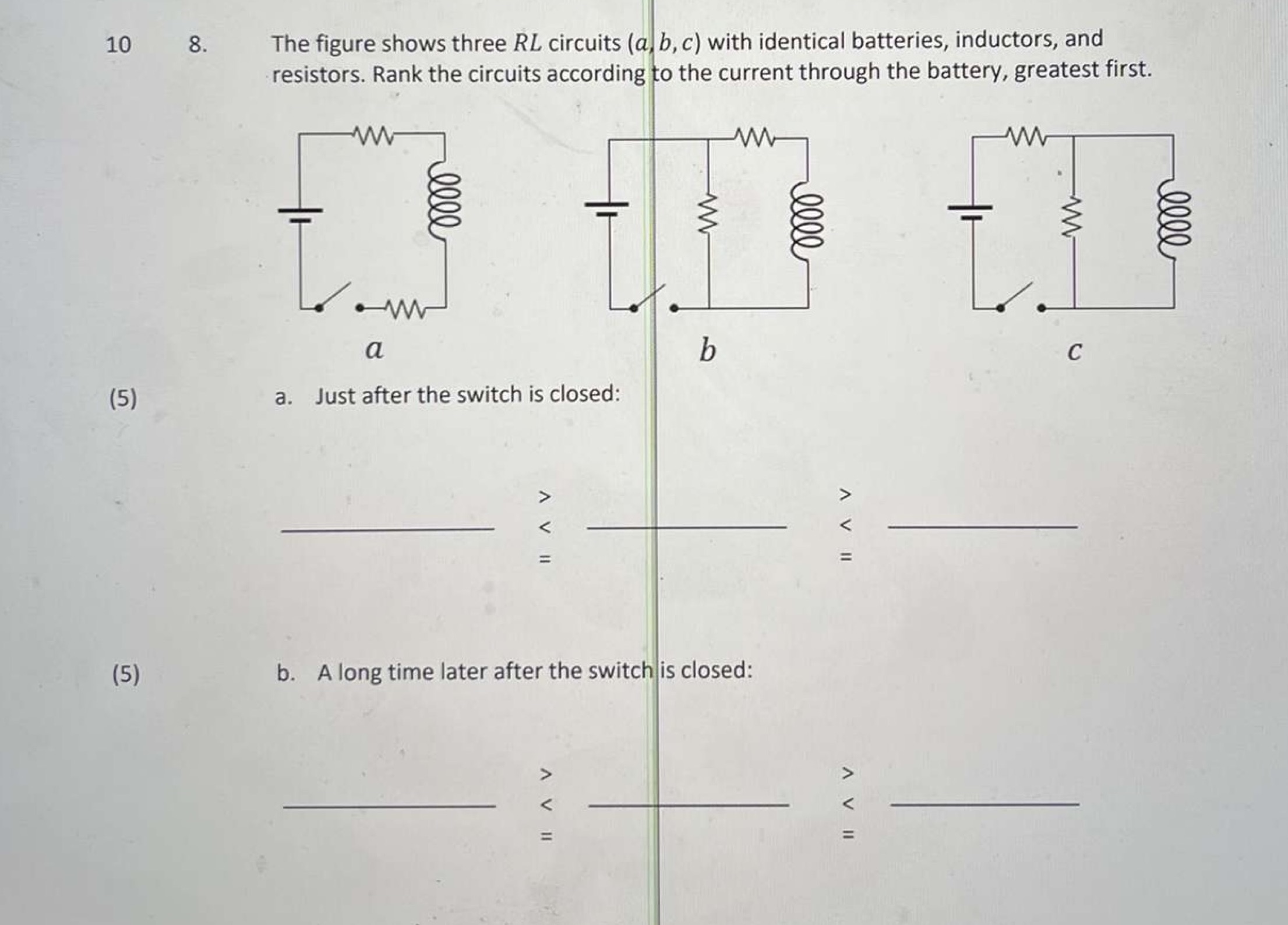

Question: 10 8. The figure shows three RL circuits (a, b, c) with identical batteries, inductors, and resistors. Rank the circuits according to the current through

10 8. The figure shows three RL circuits (a, b, c) with identical batteries, inductors, and resistors. Rank the circuits according to the current through the battery, greatest first. 6000 6000 a b C (5) a. Just after the switch is closed: II A V 11 A V (5) b. A long time later after the switch is closed: V HI A V

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
