Question: 101. Identify the addressing mode in each instruction. a. LDAA #$13 b. STAA $DC13 c. INCB d. BRA LOOP 11t. For each example indexed-addressing instruction,

101. Identify the addressing mode in each instruction. a. LDAA #$13

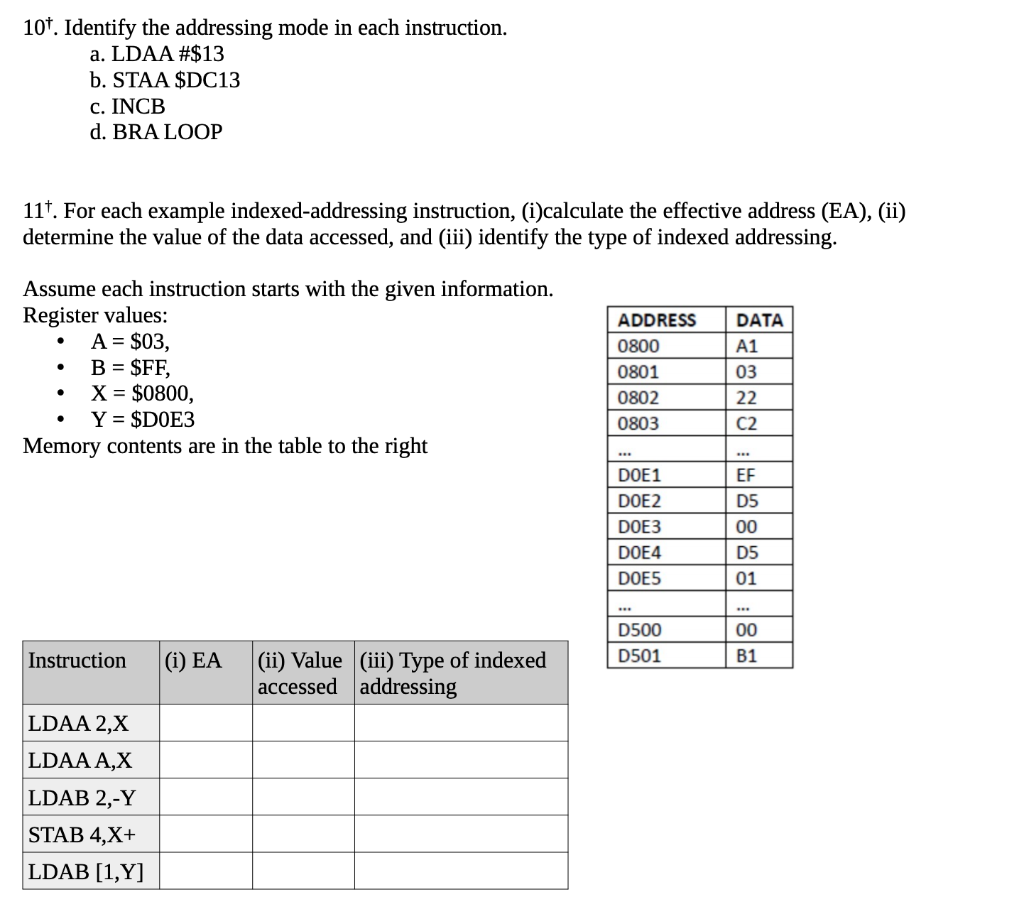

101. Identify the addressing mode in each instruction. a. LDAA #$13 b. STAA $DC13 c. INCB d. BRA LOOP 11t. For each example indexed-addressing instruction, (i)calculate the effective address (EA), (ii) determine the value of the data accessed, and (iii) identify the type of indexed addressing. Assume each instruction starts with the given information. Register values: A = $03, B = $FF, X = $0800, Y = $DOE3 Memory contents are in the table to the right ADDRESS 0800 0801 0802 0803 DATA A1 | 03 22 DOE1 DOE2 DOE3 DOE4 EF D5 00 D5 01 DOE5 D500 D501 00 B1 Instruction (i)EA (ii) Value (iii) Type of indexed accessed addressing LDAA 2,X LDAA AX LDAB 2,-Y STAB 4,X+ LDAB (1,Y] 101. Identify the addressing mode in each instruction. a. LDAA #$13 b. STAA $DC13 c. INCB d. BRA LOOP 11t. For each example indexed-addressing instruction, (i)calculate the effective address (EA), (ii) determine the value of the data accessed, and (iii) identify the type of indexed addressing. Assume each instruction starts with the given information. Register values: A = $03, B = $FF, X = $0800, Y = $DOE3 Memory contents are in the table to the right ADDRESS 0800 0801 0802 0803 DATA A1 | 03 22 DOE1 DOE2 DOE3 DOE4 EF D5 00 D5 01 DOE5 D500 D501 00 B1 Instruction (i)EA (ii) Value (iii) Type of indexed accessed addressing LDAA 2,X LDAA AX LDAB 2,-Y STAB 4,X+ LDAB (1,Y]

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
