Question: 11) (10 points) For the diagram shown below, answer the following questions. Assume that the shear force V is applied to the area of 20in2.

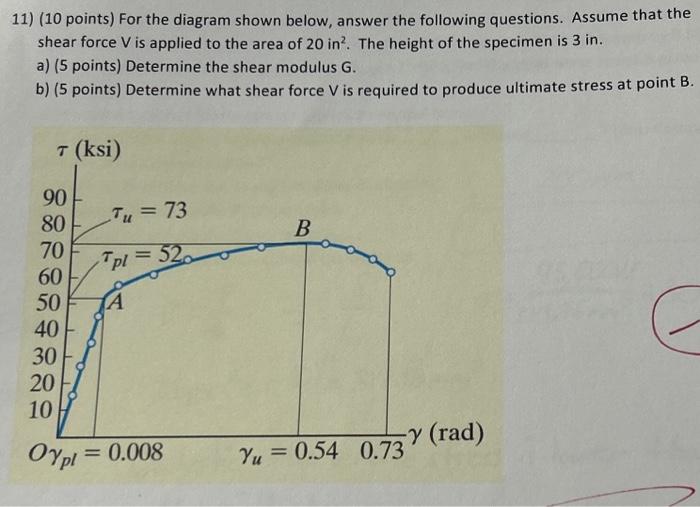

11) (10 points) For the diagram shown below, answer the following questions. Assume that the shear force V is applied to the area of 20in2. The height of the specimen is 3in. a) (5 points) Determine the shear modulus G. b) ( 5 points) Determine what shear force V is required to produce ultimate stress at point B
