Question: 11) The current potential diagram shown below, present the profiles for three systems with identical exchange current. What is the variable (parameter) that causes the

11) The current potential diagram shown below, present the profiles for

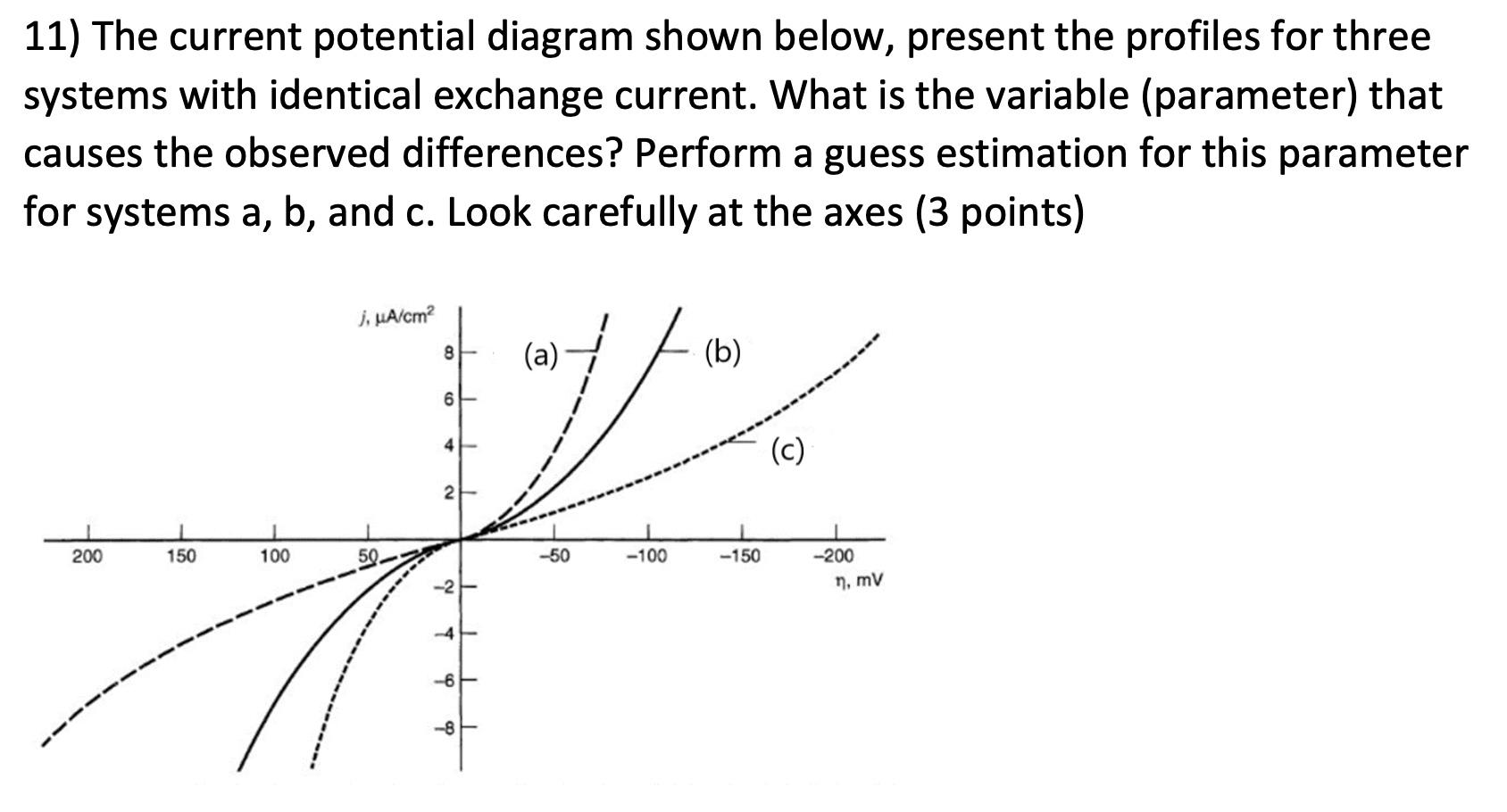

11) The current potential diagram shown below, present the profiles for three systems with identical exchange current. What is the variable (parameter) that causes the observed differences? Perform a guess estimation for this parameter for systems a, b, and c. Look carefully at the axes (3 points) j, MA/cm2 8 (a) (b) 6 11 4 (c) 2 1 -200 200 150 100 -50 -100 -150 n, mv 4 -6 1 -8
