Question: 120 150 PROBLEM 4 (4 marks) A one-way roundabout in England is shown in the figure. Assume that traffic must travel in the directions shown.

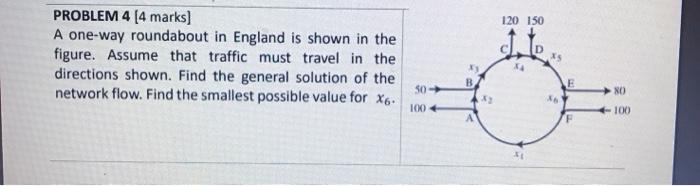

120 150 PROBLEM 4 (4 marks) A one-way roundabout in England is shown in the figure. Assume that traffic must travel in the directions shown. Find the general solution of the network flow. Find the smallest possible value for X6. 1.1 15 B 80 50 - 100 -100 SE

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
