Question: 12.0-V Questions 6-9 will use this circuit as a reference. What is the equivalent resistance of this parallel circuit 2.0-Q 3 6.0-Q 12.0-v Questions 6-9

2.0-Q 3 6.0-Q 12.0-v Questions 6-9 will use this circuit as a

12.0-V Questions 6-9 will use this circuit as a reference. What is the equivalent resistance of this parallel circuit

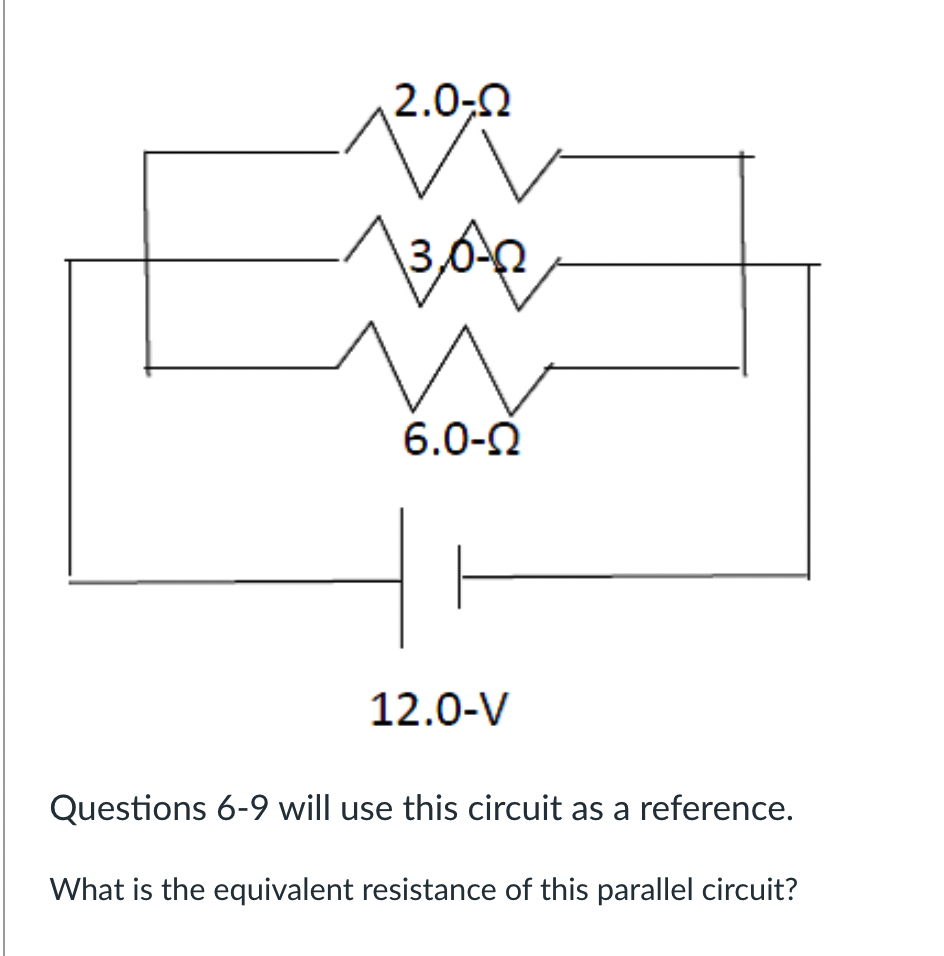

2.0-Q 3 6.0-Q 12.0-v Questions 6-9 will use this circuit as a reference. What is the equivalent resistance of this parallel circuit?

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Physics Questions!

Q:

please help 12.0-V Questions 6-9 will use this circuit as a reference. What is the equivalent resistance of this parallel circuit? Upload Choose a File

Q:

please help 12.0-V Questions 69 will use this circuit as a reference. What is true about the potential difference applied across a parallel circuit? 0 The potential difference across each individual...
