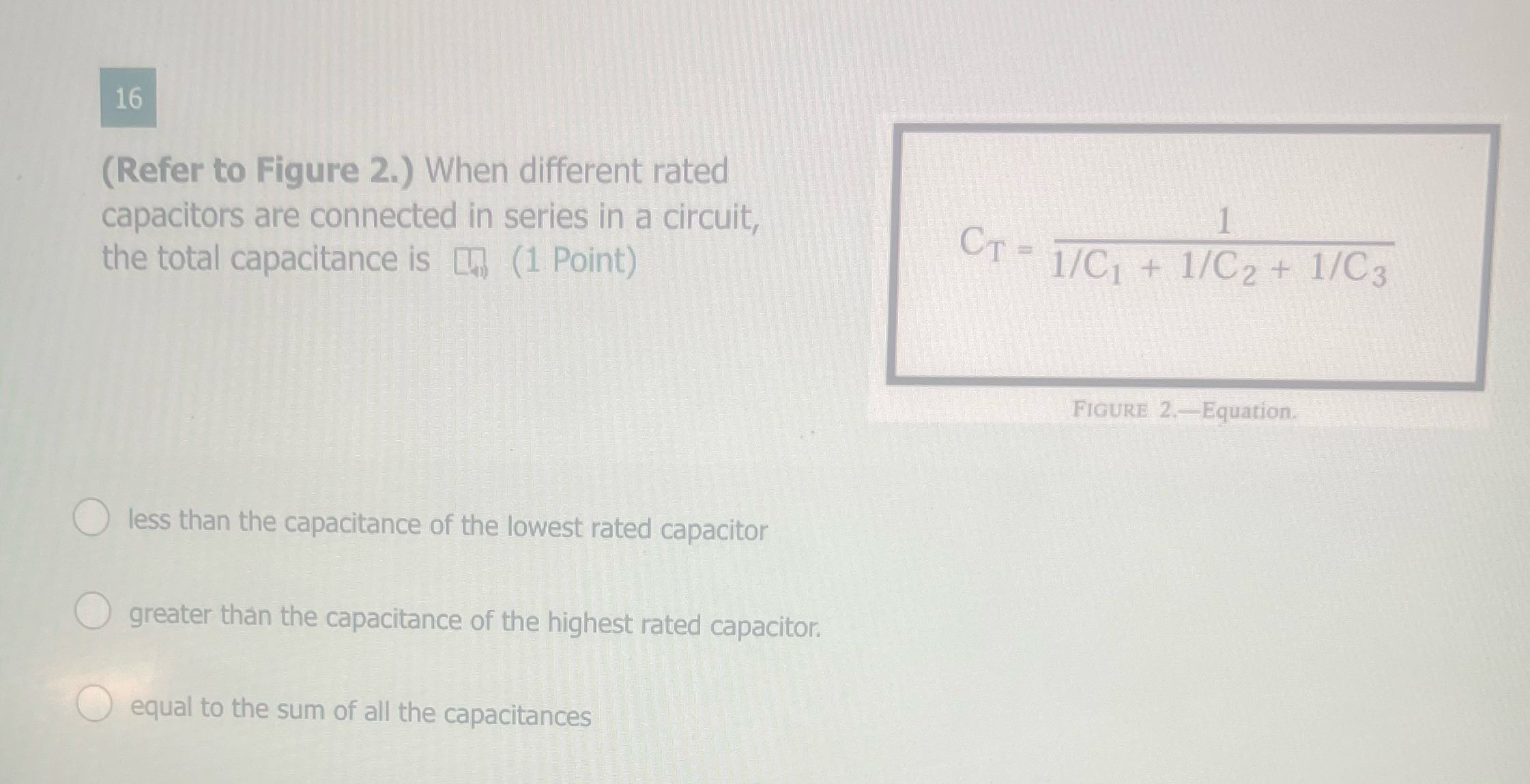

Question: 16 (Refer to Figure 2.) When different rated capacitors are connected in series in a circuit, the total capacitance is [ (1 Point) CT -

16 (Refer to Figure 2.) When different rated capacitors are connected in series in a circuit, the total capacitance is [ (1 Point) CT - 1/C + 1/C2 + 1/C3 FIGURE 2.-Equation. less than the capacitance of the lowest rated capacitor greater than the capacitance of the highest rated capacitor. equal to the sum of all the capacitances

Step by Step Solution

There are 3 Steps involved in it
