Question: (1)Multiply 0010 2 x 1010 2 (4-bit unsigned numbers). Here, we assume a hardware implementation where 8-bit multiplicand, 8-bit ALU, 8-bit product, and 4-bit multiplier

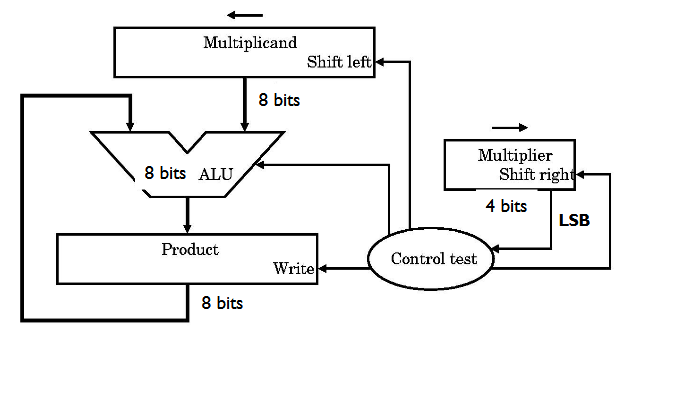

(1)Multiply 00102 x 10102 (4-bit unsigned numbers). Here, we assume a hardware implementation where 8-bit multiplicand, 8-bit ALU, 8-bit product, and 4-bit multiplier registers are used. Show ALL your work.

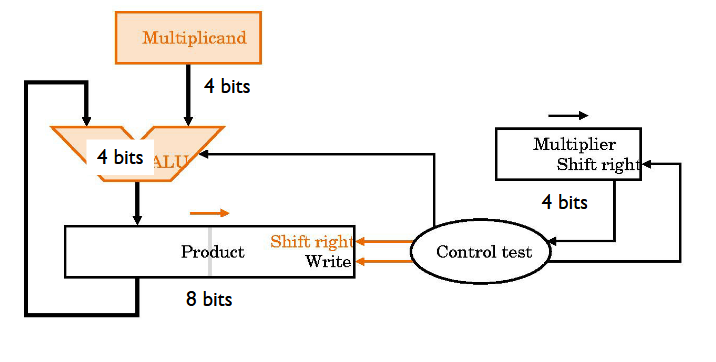

(2)Multiply 00102 x 10102 (4-bit unsigned numbers). Here, we assume a hardware implementation where 4-bit multiplicand, 4-bit ALU, 8-bit product, and 4-bit multiplier registers are used. Show All your work.
Multiplicand Shift leftm 8 bits Multiplier 8 bits ALU Shift right- 4 bits LSB Product Write- Control test 8 bits
