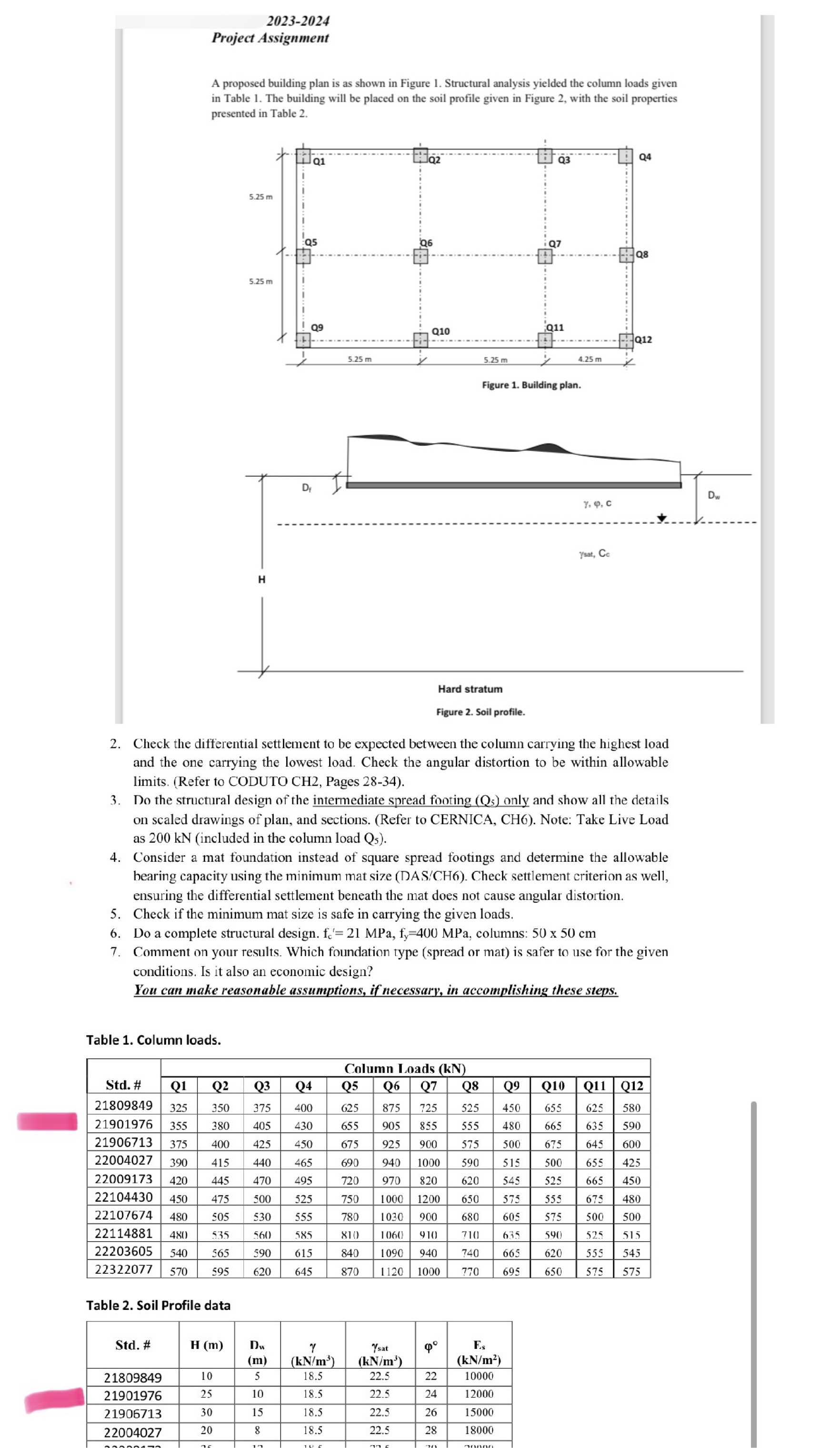

$2023-2024$

Project Assignment Bearing capacity $=279$kpa

Figure $2.$ Soil profile.

$2.$ Check the differential settlement to be expected between the column carrying the highest load and the one carrying the lowest load. Check the angular distortion to be within allowable limits$.($Refer to CODUTO CH$2,$ Pages $28-34).$

$3.$ Do the structural design of the intermediate spread footing $(Q_5)$ only and show all the details on scaled drawings of plan, and sections. $($Refer to CERNICA, CH$6).$ Note: Take Live Load as $200$ kN $($included in the column load $Q_5).$

$4.$ Consider a mat foundation instead of square spread footings and determine the allowable bearing capacity using the minimum mat size $($DAS$/$CH$6).$ Check settlement criterion as well, ensuring the differential settlement beneath the mat does not cause angular distortion.

$5.$ Check if the minimum mat size is safe in carrying the given loads.

$6.$ Do a complete structural design. $f_c^{\text{'}}=21$MPa,$f_y=400$MPa, columns: $5050cm$

$7.$ Comment on your results. Which foundation type $($spread or mat$)$ is safer to use for the given conditions. Is it also an economic design?

You can make reasonable assumptions, if necessarv, in accomplishing these steps.

Table $1.$ Column loads.

$\backslash$table$[[$Std$.$ #$,$Column Loads $($kN$),,],[$Q$1,$Q$2,$Q$3,$Q$4,$Q$5,$Q$6,$Q$7,$Q$8,$Q$9,$Q$10,$Q$11,$Q$12],[21809849,325,350,375,400,625,875,725,525,450,655,625,580],[21901976,355,380,405,430,655,905,855,555,480,665,635,590],[21906713,375,400,425,450,675,925,900,575,500,675,645,600],[22004027,390,415,440,465,690,940,1000,590,515,500,655,425],[22009173,420,445,470,495,720,970,820,620,545,525,665,450],[22104430,450,475,500,525,750,1000,1200,650,575,555,675,480],[22107674,480,505,530,555,780,1030,900,680,605,575,500,500],[22114881,480,535,560,585,810,1060,910,710,635,590,525,515],[22203605,540,565,590,615,840,1090,940,740,665,620,555,545],[22322077,570,595,620,645,870,1120,1000,770,695,650,575,575]]$

Table $2.$ Soil Profile data

$\backslash$table$[[$Std$.$ #$,H(m),\backslash$table$[[D_w$
