Question: 2 0 % Determine the force in members E F , B E , B C , and BF of the truss and state if

20%

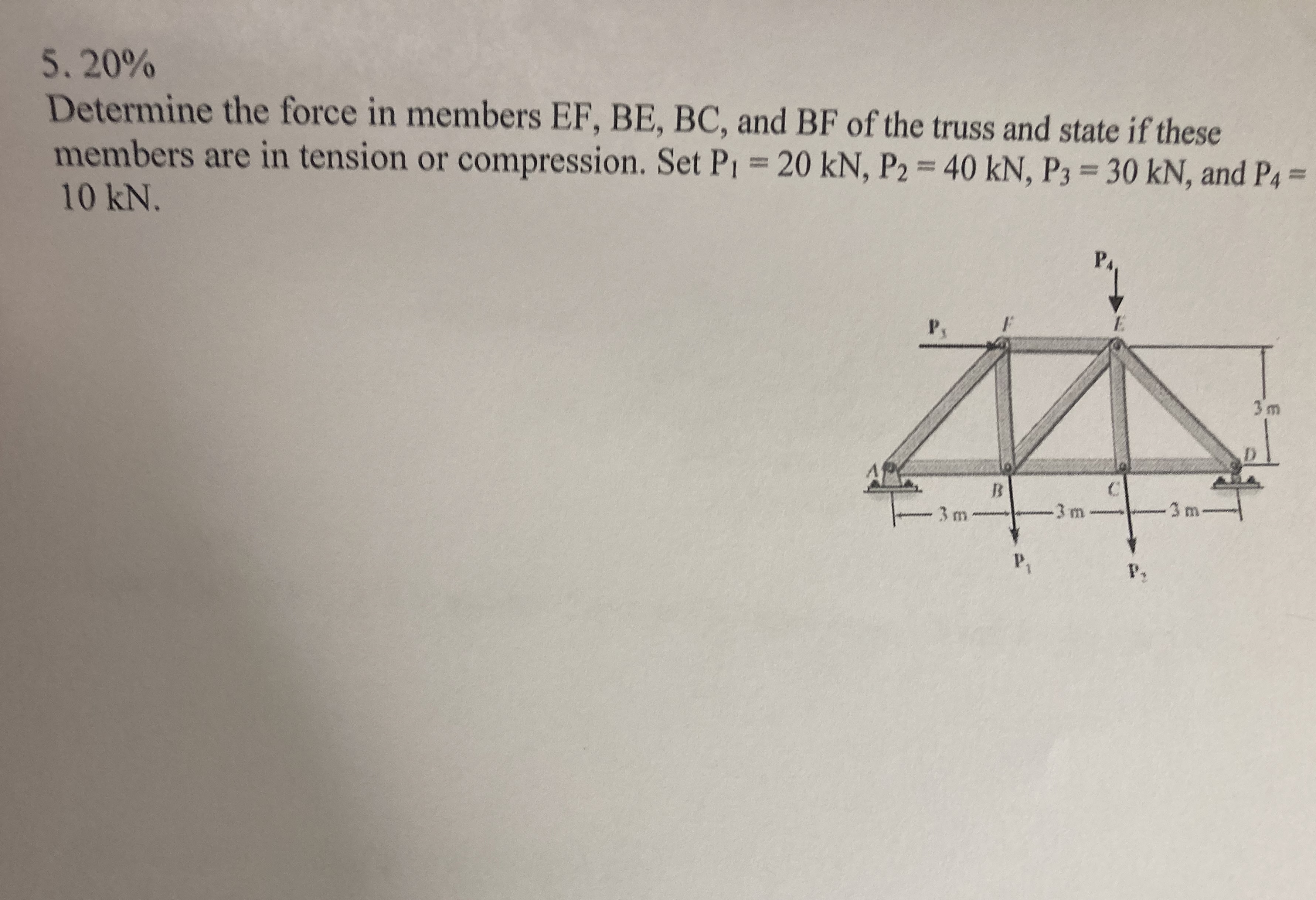

Determine the force in members EF,BE,BC, and BF of the truss and state if these members are in tension or compression. Set P1=20kN,P2=40kN,P3=30kN, and P4=10 kN .
2 0 % Determine the force in members E F , B E ,

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
