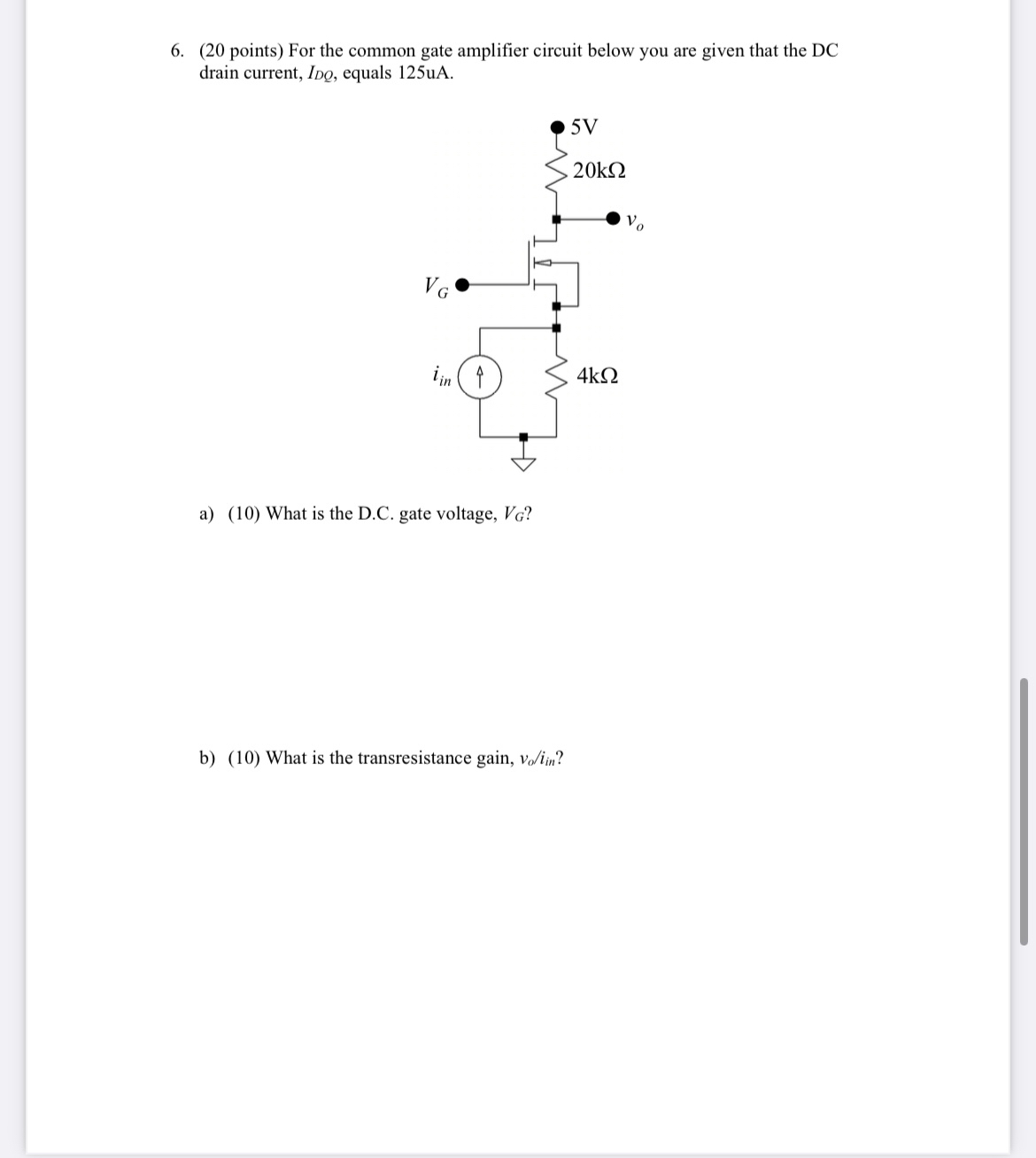

Question: ( 2 0 points ) For the common gate amplifier circuit below you are given that the DC drain current, I D Q , equals

(20 points) For the common gate amplifier circuit below you are given that the DC drain current, IDQ, equals 125 uA .
a)(10) What is the D.C. gate voltage, VG?
b)(10) What is the transresistance gain, voiin?
