Question: ( 2 0 Points ) Sketch a profile from Point A to Point B . Include existing grade and finished / proposed grade. ( )

(20 Points) Sketch a profile from Point A to Point B. Include existing grade and finished/proposed grade. ()

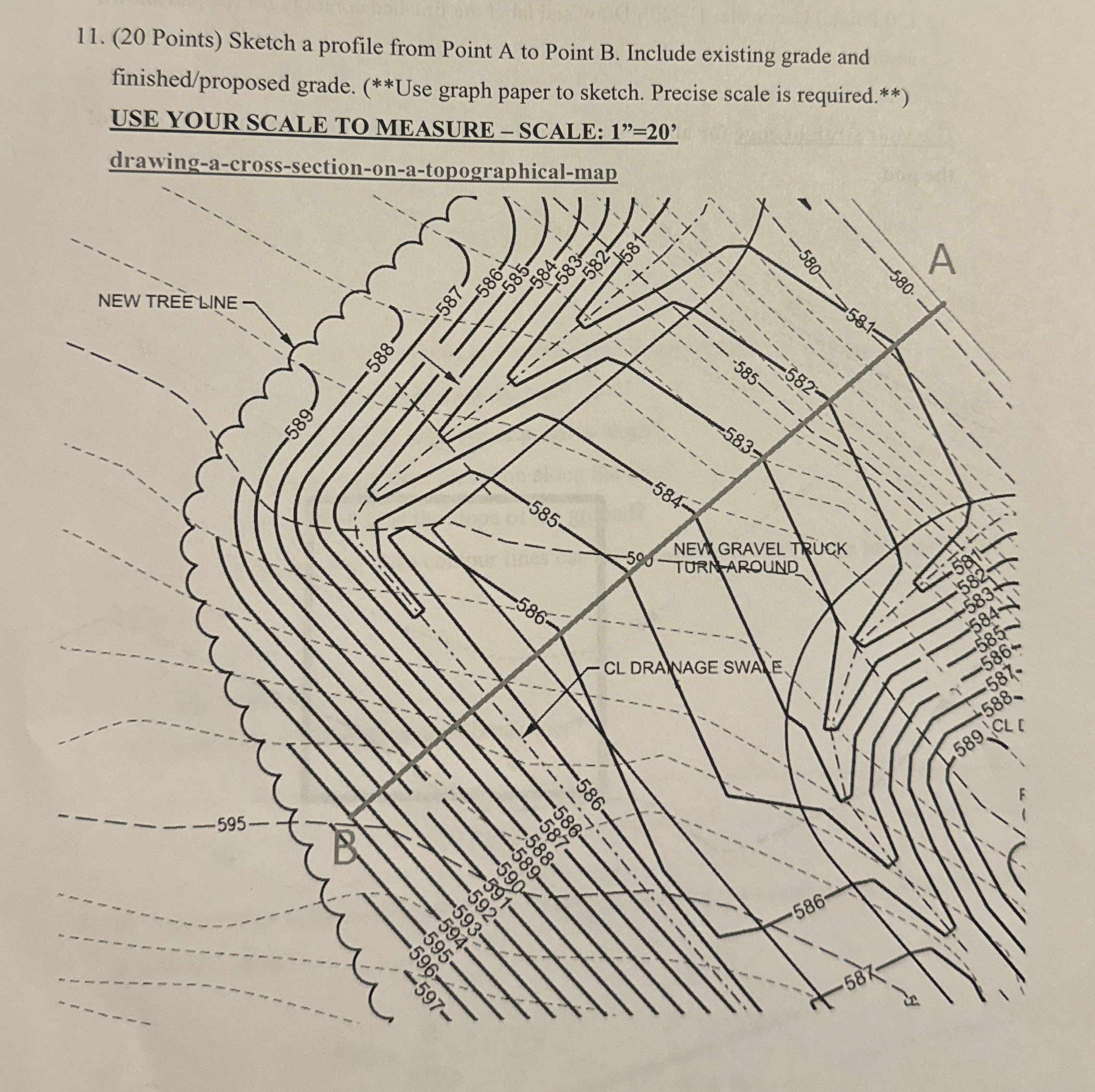

USE YOUR SCALE TO MEASURE - SCALE: 1'?''20
drawing-a-cross-section-on-a-topographical-map
( 2 0 Points ) Sketch a profile from Point A to

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
