Question: ( 2 0 points ) The rigid frame shown below is fixed at A , B , C , and D . All columns are

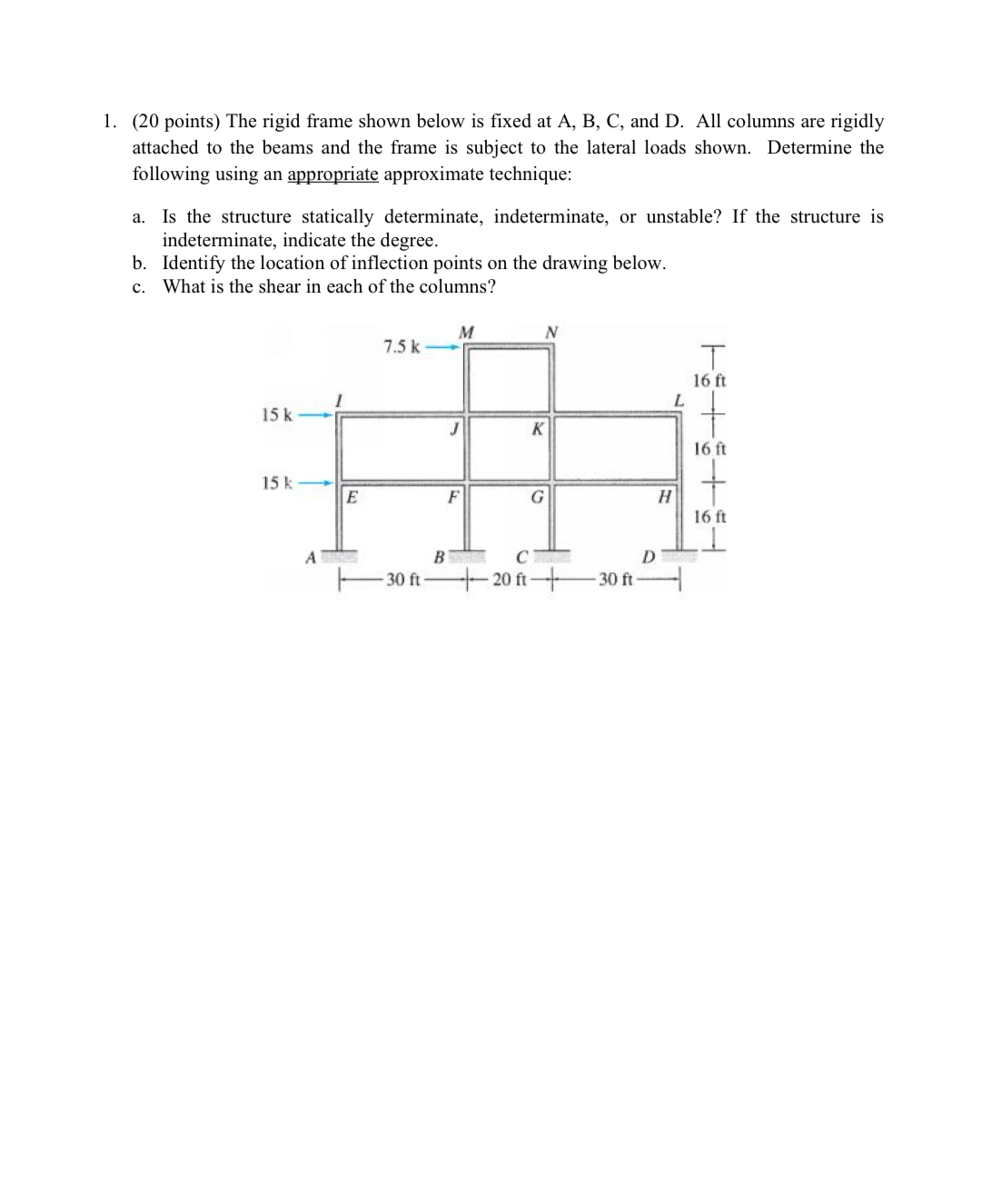

(20 points) The rigid frame shown below is fixed at A,B,C, and D. All columns are rigidly attached to the beams and the frame is subject to the lateral loads shown. Determine the following using an appropriate approximate technique:
a. Is the structure statically determinate, indeterminate, or unstable? If the structure is indeterminate, indicate the degree.
b. Identify the location of inflection points on the drawing below.
c. What is the shear in each of the columns?
( 2 0 points ) The rigid frame shown below is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
