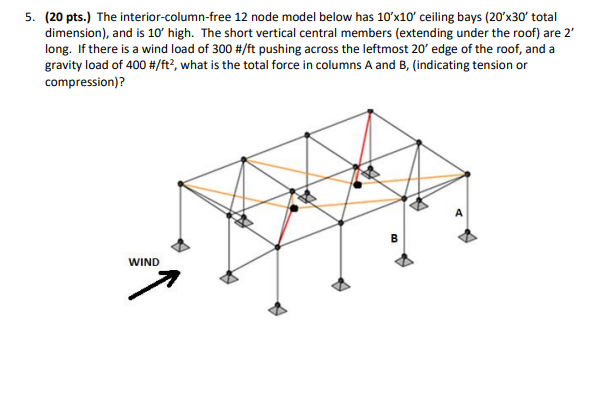

(20 pts.) The interior-column-free 12 node model below has 10'10' ceiling bays (20'30' total dimension), and is 10' high. The short vertical central members (extending under the roof) are 2' long. If there is a wind load of 300 #/ft pushing across the leftmost 20' edge of the roof, and a gravity load of 400#ft2, what is the total force in columns A and B,(indicating tension or compression)?
