Question: ( 2 0 % ) The switch in Fig. 5 has been in position A for a long time. At t = 0 , the

(20%) The switch in Fig. 5 has been in position A for a long time. At t=0, the switch moves from position A to B. The switch is a make-before-break type so that there is no interruption in the inductor current. Find: (a)i(t) for t0,(b)v(0) just after the switch has been moved to position B,(c)v(t) long after the switch is in position B.

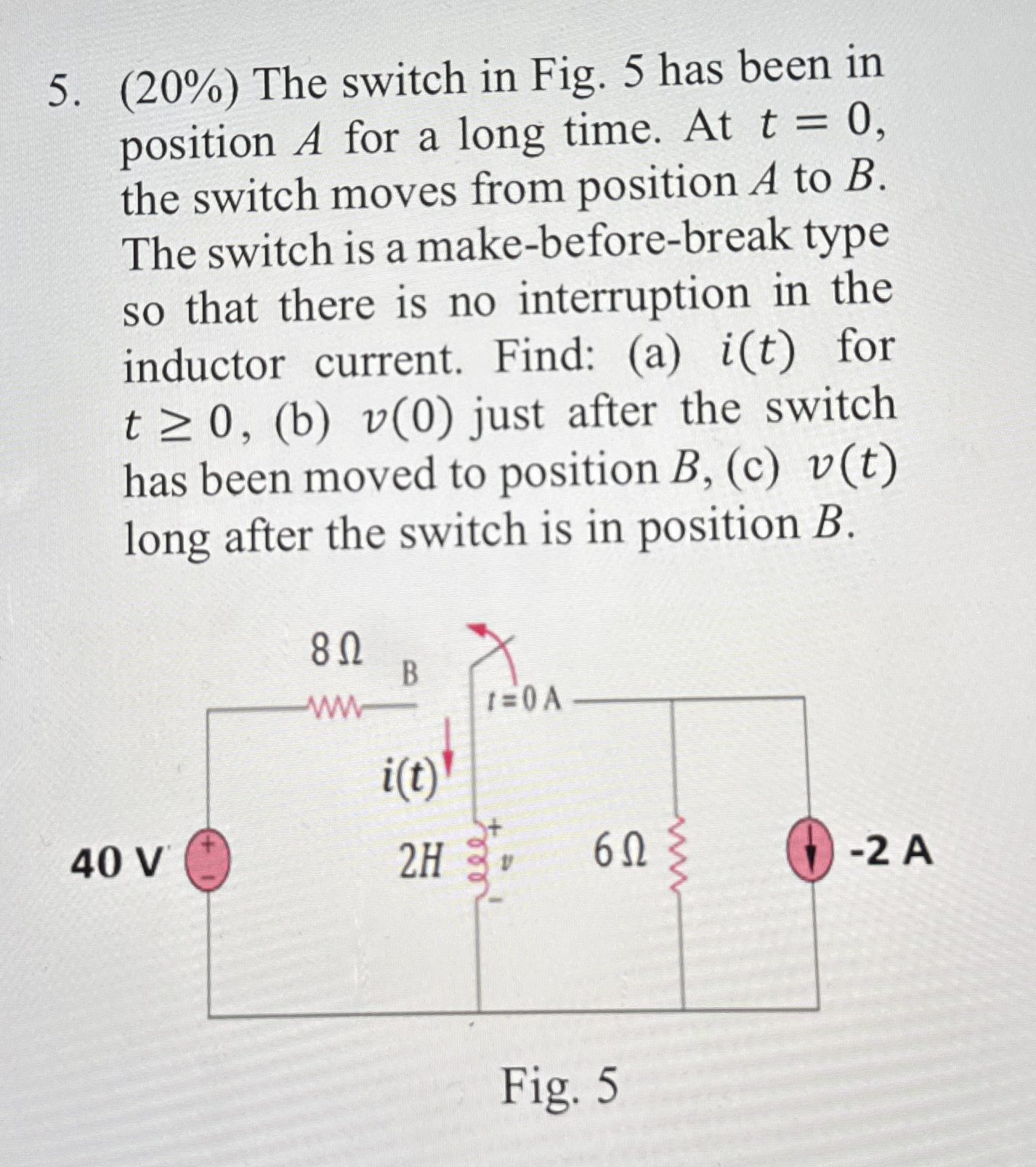

Fig. 5
( 2 0 % ) The switch in Fig. 5 has been in

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
