Question: 2 - 1 0 6 . The semicircular gate is used to control the flow of water over a spillway. If the water is at

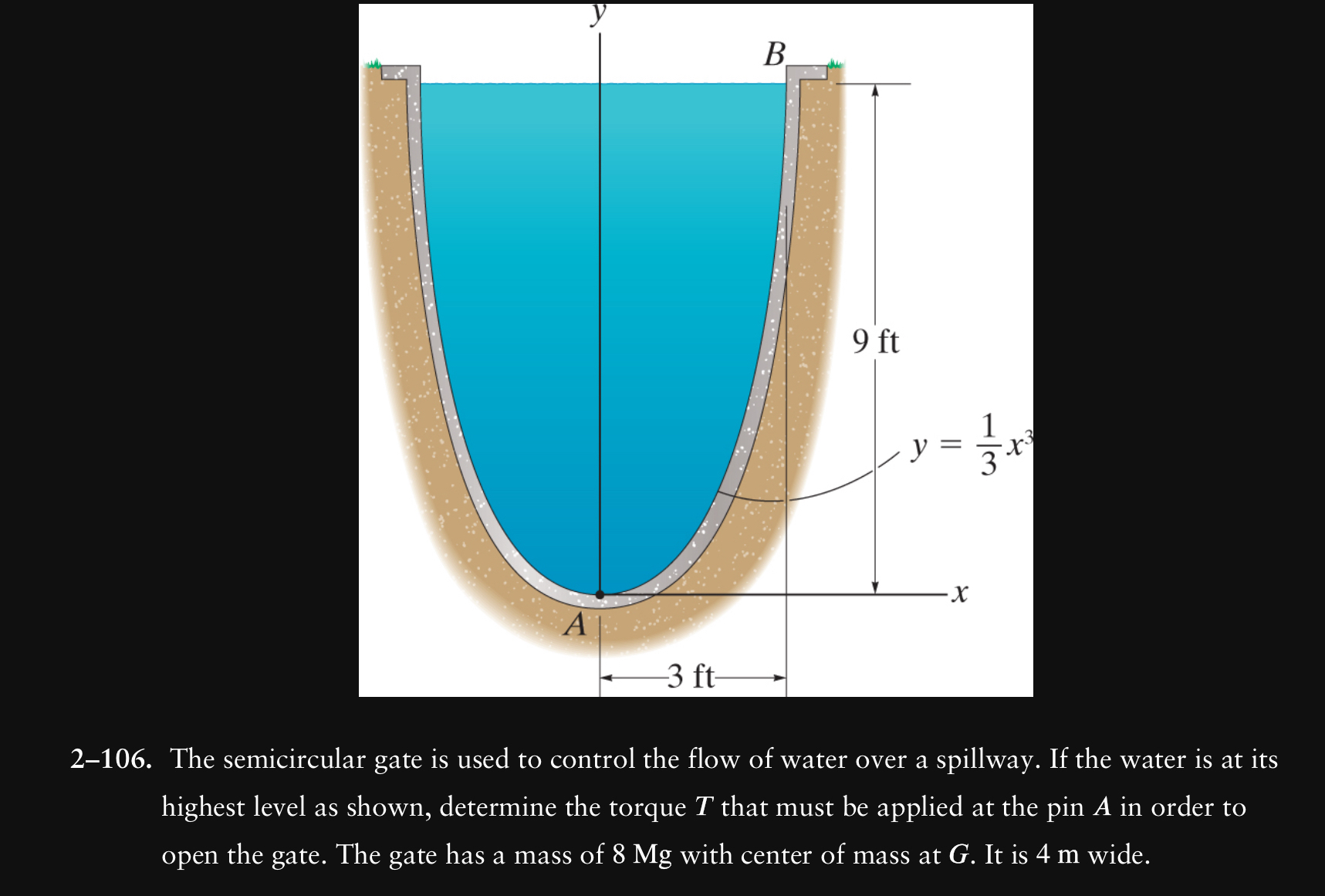

2-106. The semicircular gate is used to control the flow of water over a spillway. If the water is at its highest level as shown, determine the torque T that must be applied at the pin A in order to open the gate. The gate has a mass of 8Mg with center of mass at G. It is 4m wide. The answer for T is 157 kN*m and do not forget to find fv acting in the gate. Thank you!!
2 - 1 0 6 . The semicircular gate is used to

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
