PLS HELP ASAP
Required information
Problem 11.035- Selectlon of a bearing for a shaft design

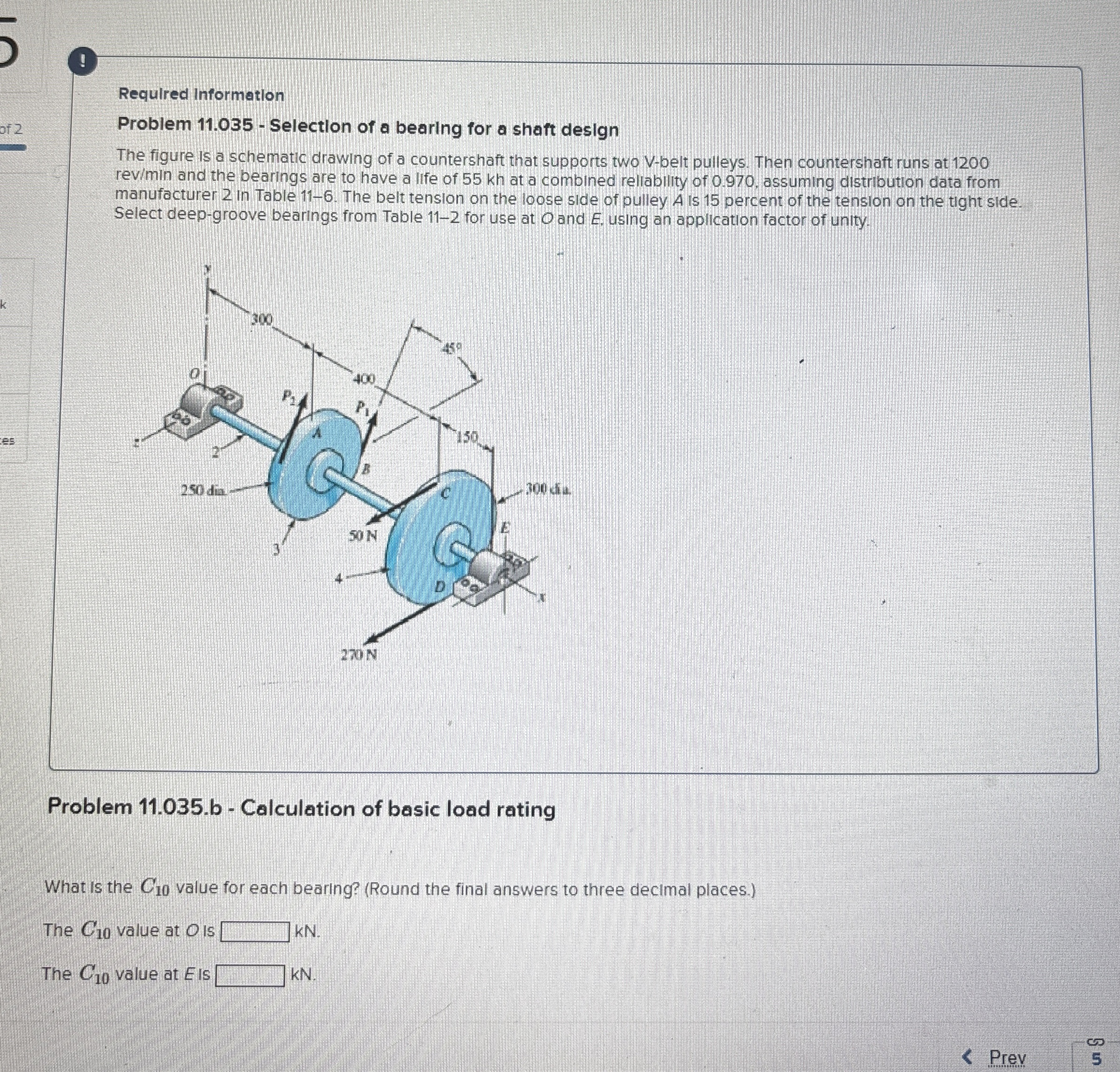

The figure is a schematic drawing of a countershaft that supports two V-belt pulleys. Then countershaft runs at 1200 rev/min and the bearings are to have a life of 55 kh at a combined reliability of 0.970, assuming distribution data from manufacturer 2 in Table 11-6. The belt tension on the loose side of pulley A is 15 percent of the tension on the tight side. Select deep-groove bearings from Table 11-2 for use at O and E. using an appication factor of unity.
Problem 11.035.b - Calculation of basic load rating
What is the C10 value for each bearing? (Round the final answers to three decimal places.)
The C10 value at O is kN
The C10 value at E Is kN .
