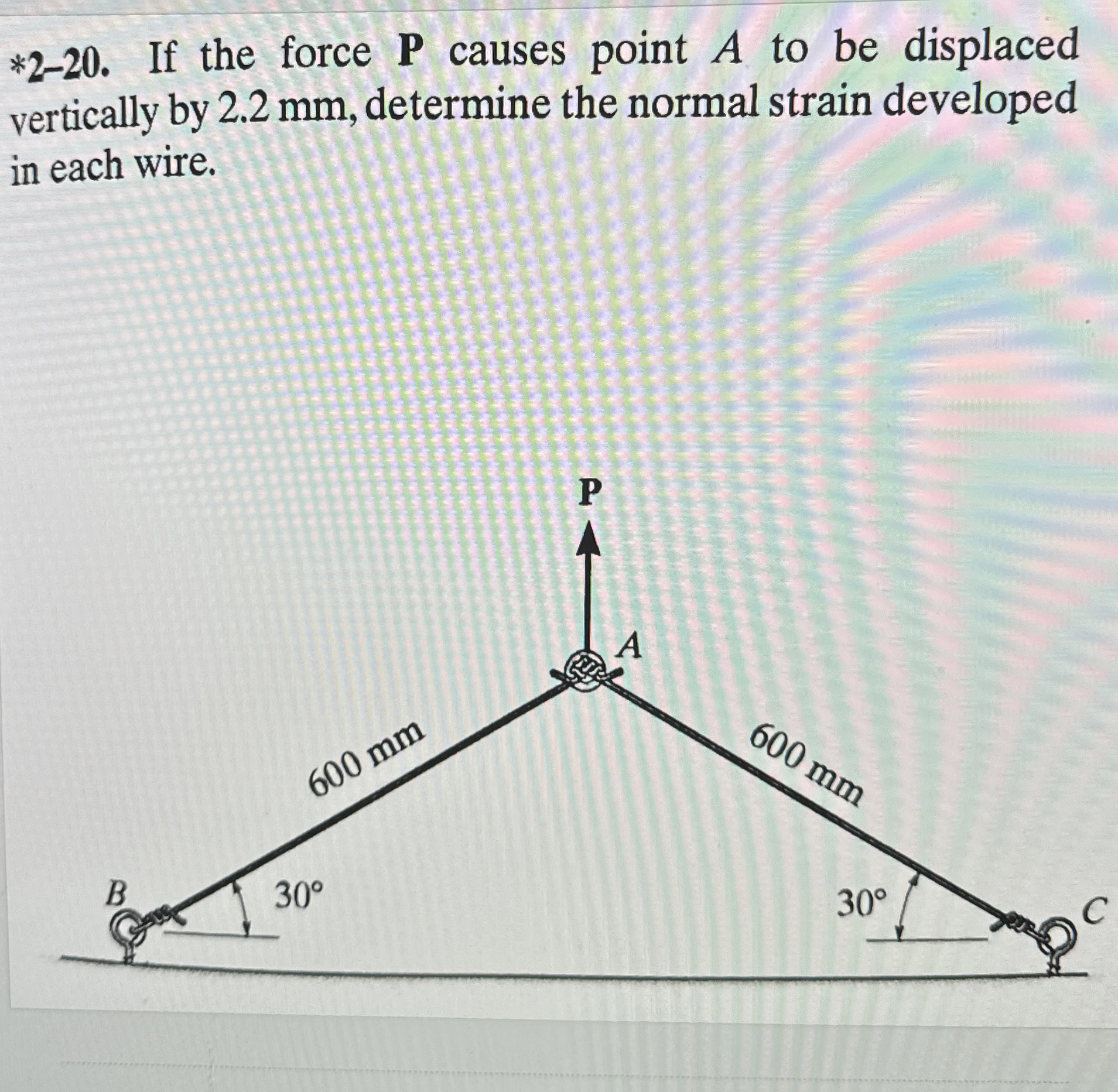

Question: * * 2 - 2 0 . If the force P causes point A to be displaced vertically by 2 . 2 mm , determine

**2-20. If the force P causes point A to be displaced
vertically by 2.2 mm , determine the normal strain developed
in each wire.
* * 2 - 2 0 . If the force P causes point A to be

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

If the force P causes point A to be displaced vertically by 2.2 mm, determine the normal strain developed in each wire. 600 mm B 30 P 600 mm 30 C
