Question: 2 - 2 2 . The triangular plate is fixed at its base, and its apex A is given a horizontal displacement of 5 mm

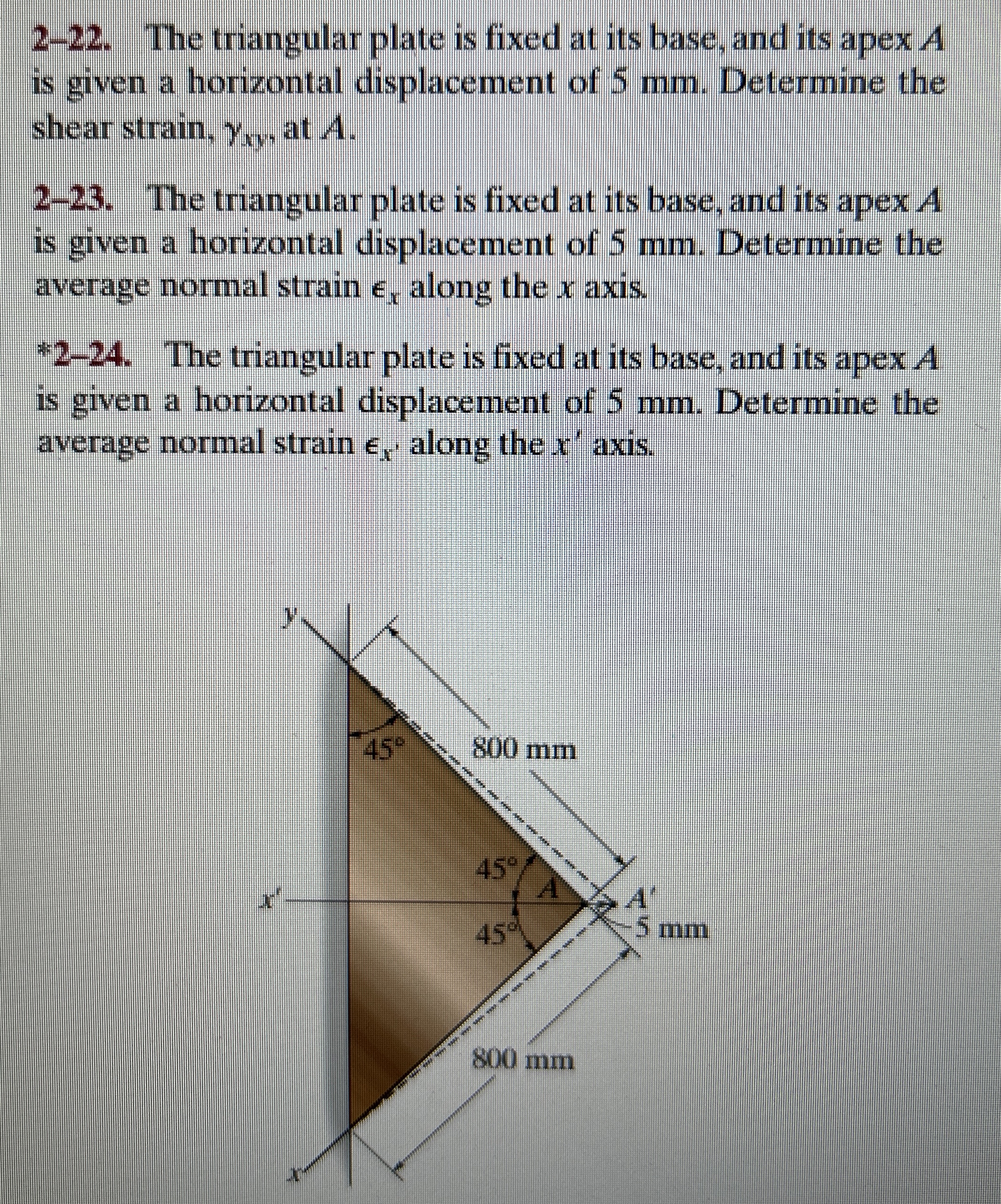

2-22. The triangular plate is fixed at its base, and its apex A is given a horizontal displacement of 5 mm . Determine the shear strain, xy, at A.
2-23. The triangular plate is fixed at its base, and its apex A is given a horizontal displacement of 5 mm . Determine the average normal strain lonx along the x axis.
*2-24. The triangular plate is fixed at its base, and its apex A is given a horizontal displacement of 5 mm . Determine the average normal strain lonx' along the x' axis.
2 - 2 2 . The triangular plate is fixed at its

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

The triangular plate is fixed at its base, and its apex A is given a horizontal displacement of 5 mm. Determine the shear strain, γ xy , at A. 45 800 mm 45 A' -5 mm 45% 800 mm

Q:

The triangular plate is fixed at its base, and its apex A is given a horizontal displacement of 5 mm. Determine the average normal strain ε x along the x axis. 45 800 mm 45 A' 5 mm 45%...

Q:

The triangular plate is fixed at its base, and its apex A is given a horizontal displacement of 5 mm. Determine the average normal strain ε x ' along the x' axis. 45 800 mm 45 x' A' -5...
