$23\mathrm{.}1$ Project$1$: Filtered temperature data

Requirements Summary

Create a C$++$ program that first reads the time stamp and temperature data from the input testfile

$($testilexx$)$ and produces a smoothed curve of timestamped temperature data. The result should be

placed in the output files called outputfilexx.

Input Temperature Log Format

The input temperature log format provides a log of recorded times and temperature readings, in which

one reading will be specified per line, using the following format:

$HH$:$MM,$ TT$.$T

where

HH:MM represents the time at which the temperature was recorded and is specified in $24$ hour format.

The time format used in the file is $00$:$00$ through $23$:$59.$

TT$.$T represents the recorded temperature reported in Fahrenheit

The time and temperature will be separated by one or more whitespace characters. Each input file

contains several hours worth of temperature readings.

Note: The temperature log may be missing data and may not contain a complete log of temperature

for every minute.

The following is a simple example of the input file format:

Data structure

The following data structure MUST be used for storing data.

struct time$\_$temp $\{$

string Eimestamp;

double temperature;

$\}$;

You may modify or add other data in the given struct as you see fit.

Temperature Filtering Part $1$: Removing Erroneous Data

Your program should first remove any erroneous temperature readings.

An erroneous temperature reading is defined as a temperature reading that is either more than $5$

degrees above or less than $5$ degrees below the temperature recorded in the previous minute.

All erroneous temperature readings should be removed.

For example, given the data above, after Filtering Part $1,$ it should look as follows $($observe that $00$:$15$

$76\mathrm{.}3$ is removed since $76\mathrm{.}3$ is more than $5$ degrees of $67\mathrm{.}3$ at $00$:$14)$

Temperature Filtering Part $2$: Simple Low$-$Pass Filter of Consecutive

Samples

As temperature sensor readings may be noisy, we would like to apply a simple low$-$pass filter to filter

any sequences of consecutive temperature readings. The following defines a simple low$-$pass filter

that can be used for these purposes:

$filtere{d}_o$utput $(0)=unfiltere{d}_i$nput $(0)$

$filtere{d}_o$utput $(n)=0\mathrm{.}9375**filtere{d}_o$utput $(n-1)+0\mathrm{.}0625***$

$unfiltere{d}_i$nput $(n)$

Note: After removing the erroneous data, your program should apply a low$-$pass filter to sequences

of temperature readings for consecutive times. The filter should restart if any gaps $($in timestamp$)$

are found within the recorded data.

Filtered Output File Format

The filtered output log should be formatted with one entry per line using the following format:

:MM TT$.$TTTTTT

where

HH:MM represents the time at which the temperature was recorded and is specified in $24$ hour format.

The time format used in the file is $00$:$00$ through $23$:$59.$

TT$.$TTTTTT represents the filtered temperature value in Fahrenheit as a floating$-$point value with $6$

decimal digits of precision. Each entry should be separate by a single tab character $($ t t $).$

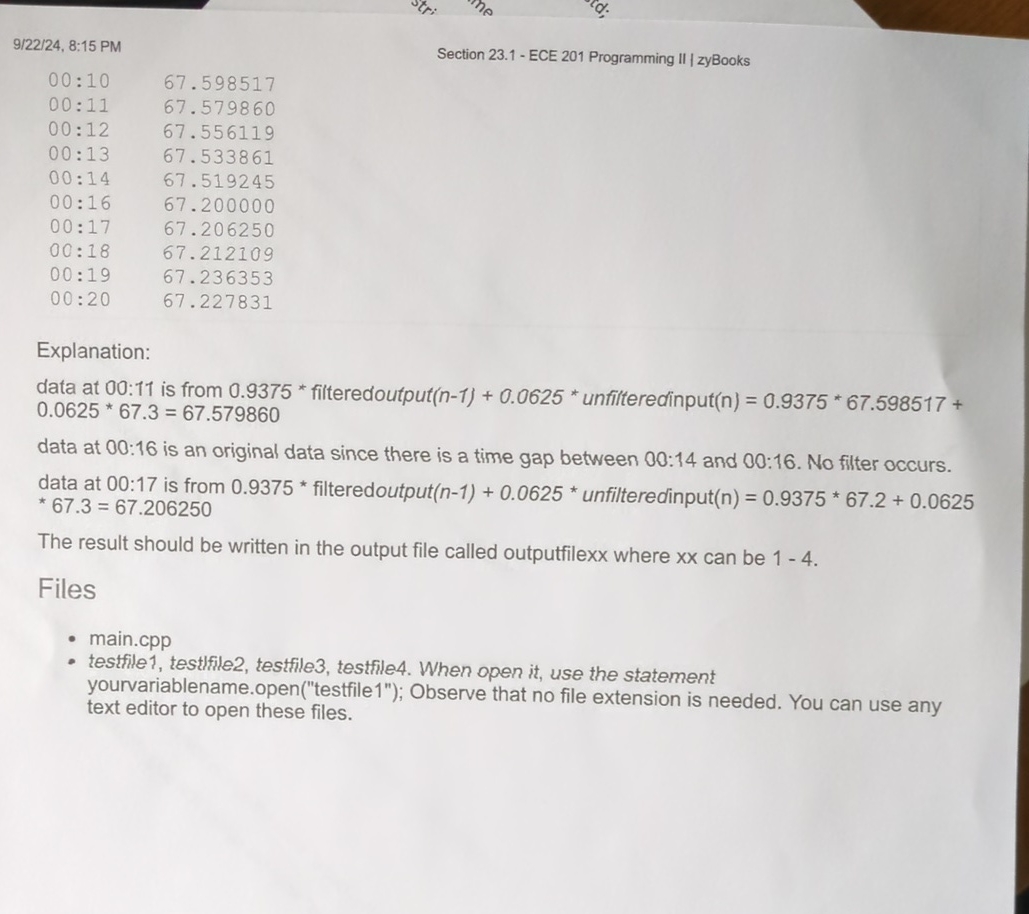

For example, consider the data given in Filtering Part $1,$ the output is

$00$:$1067\mathrm{.}598517$

$00$:$1167\mathrm{.}579860$

$00$:$1267\mathrm{.}556119$

$00$:$1367\mathrm{.}533861$

$00$:$1467\mathrm{.}519245$

$00$:$1667\mathrm{.}200000$

$00$:$1767\mathrm{.}206250$

$00$:$1867\mathrm{.}212109$

$00$:$1967\mathrm{.}236353$

$00$:$2067\mathrm{.}227831$

Explanation:

data at $00$:$11$ is from ${0\mathrm{.}9375}^{**}$ filteredoutput $(n-1)+0\mathrm{.}0625*$ unfilteredinput $(n)=0\mathrm{.}9375**67\mathrm{.}598517+$

$0\mathrm{.}0625*67\mathrm{.}3=67\mathrm{.}579860$

data at $00$:$16$ is an original data since there is a time gap between $00$:$14$ and $00$:$16.$ No filter occurs.

data at $00$:$17$ is from $0\mathrm{.}9375*$ filteredoutput $(n-1)+0\mathrm{.}0625*$ unfilteredinput$(n)=0\mathrm{.}9375*67\mathrm{.}2+0\mathrm{.}0625$

$67\mathrm{.}3=67\mathrm{.}206250$

The result should be written in the output file called outputfilexx where $$ can be $1-4.$

Files

main.cpp

testfile$1,$ test$/$file$2,$ testfile$3,$ testfile$4.$ When open it$,$ use the statement

yourvariablename.open$("$testfile$1")$; Observe that no file extension is needed. You can use any

text editor to open these files.
