Question: 2 . 3 8 Two forces P and Q are applied as shown to a bracket in a spacecraft frame. Knowing that the connection is

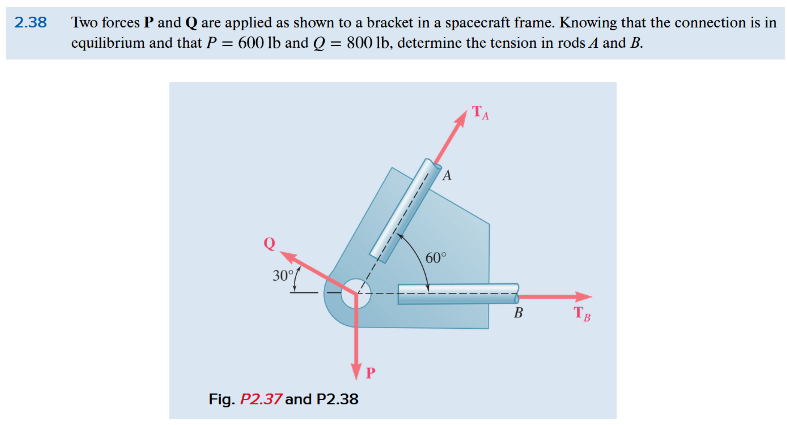

2.38 Two forces P and Q are applied as shown to a bracket in a spacecraft frame. Knowing that the connection is in equilibrium and that P=600lb and Q=800lb, determine the tension in rods A and B.
2 . 3 8 Two forces P and Q are applied as shown

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

[ 7 ] Two forces P and Q are applied as shown to an aircraft connection. Knowing that the connection is in equilibrium and that the magnitudes of the forces exerted on rods A and B are F A = 7 5 0 l...

Q:

08: Two forces P and Q are applied as shown to an aircraft connection. Knowing that the connection is in equilibrium and that the magnitudes of the forces exerted on rods A and B are FA = 750 lb and...

Q:

Two forces P and Q are applied as shown to an aircraft connection. Knowing that the connection is in equilibrium and that the magnitudes of the forces exerted on rods A and B are F A = 600 lb and F B...

Q:

Two forces P and Q are applied as shown to an aircraft connection. Knowing that the connection is in equilibrium and that the magnitudes of the forces exerted on rods A and B are FA = 750lb and FB =...

Q:

Two forces P and Q are applied as shown to an aircraft connection. Knowing that the connection is in equilibrium and the P = 400 lb and Q = 520 lb, determine the magnitudes of the forces exerted on...

Q:

Two forces P and Q are applied as shown to an aircraft connection. Knowing that the connection is in equilibrium and that P = 500lb and Q= 650lb, determine the magnitudes of the forces exerted on the...

Q:

Two forces P and Q are applied as shown to an aircraft connection. Knowing that the connection is in equilibrium and that P = 600 lb and Q = 800 lb, determine the tension in rods A and B. 30 60 TA B...

Q:

NOTE: This is a muitt - part question. Once an answer is submitted, you will be unable to return to this part. Two forces P and Q are applied as shown to an alrcraft connection. Knowing that the...

Q:

HW 2.3 6 13 Required information Part 1812 NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part Two forces P and Q are applied as shown to an...

Q:

S: Four forces act on bolt A as shown. Determine the resultant of the forces on the bolt and the resultant angle. (5 marks) 20 F- 80 N F= 150 N 300 150 F= 100 N F= 110 N 3 6: Two forces P and Q of...
