Question: [ 7 ] Two forces P and Q are applied as shown to an aircraft connection. Knowing that the connection is in equilibrium and that

[7]

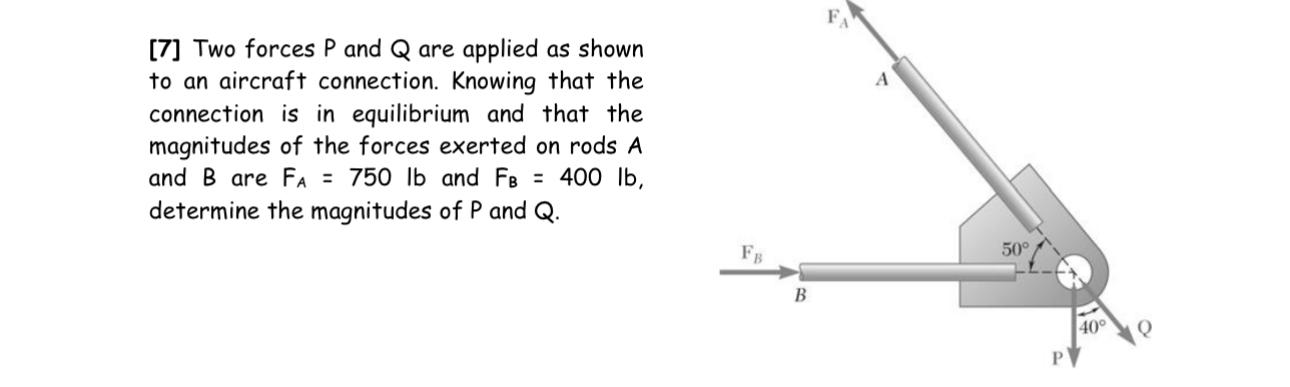

Two forces P and Q are applied as shown to an aircraft connection. Knowing that the connection is in equilibrium and that the magnitudes of the forces exerted on rods A and

B

are

F_{A} = 750 l b

and

F_{B} = 400 l b,

determine the magnitudes of

P

and

Q .

[7]

Two forces P and Q are applied as shown to an aircraft connection. Knowing that the connection is in equilibrium and that the magnitudes of the forces exerted on rods A and

B

are

F_{A} = 750 l b

and

F_{B} = 400 l b,

determine the magnitudes of

P

and

Q .

[ 7 ] Two forces P and Q are applied as shown to

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
