Question: [ 2 3 pts ] The structure shown is externally supported by pins at points A and F . The members are connected by pins

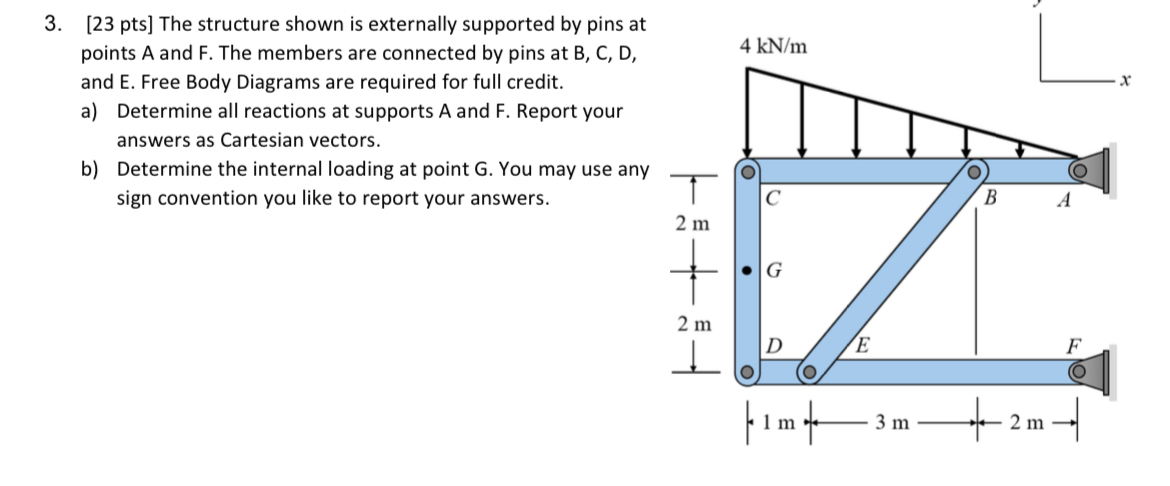

[23 pts] The structure shown is externally supported by pins at points A and F. The members are connected by pins at B, C, D, and E. Free Body Diagrams are required for full credit.
a) Determine all reactions at supports A and F. Report your answers as Cartesian vectors.
b) Determine the internal loading at point G. You may use any sign convention you like to report your answers.
[ 2 3 pts ] The structure shown is externally

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
