Question: 2 3 Water flows through a Venturi section as shown. A mercury manometer is connected across two taps in the upstream pipe and the throat

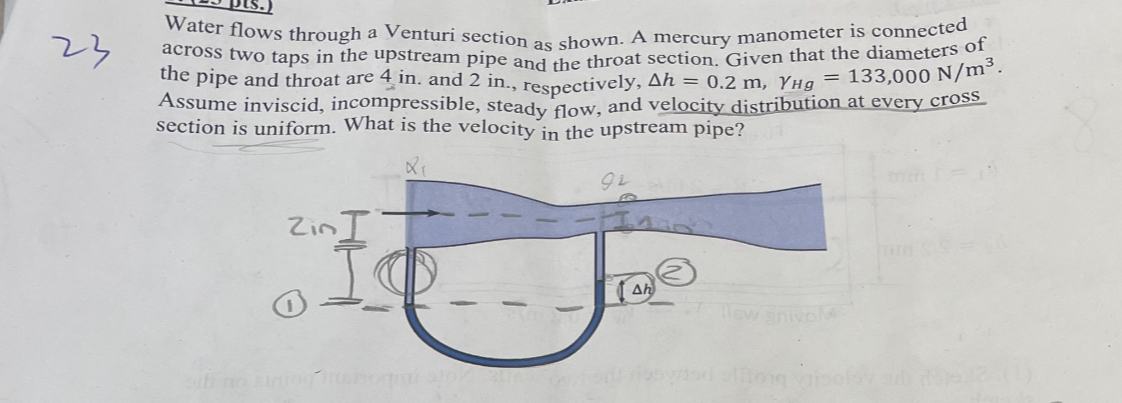

23 Water flows through a Venturi section as shown. A mercury manometer is connected across two taps in the upstream pipe and the throat section. Given that the diameters of the pipe and throat are 4 in. and 2 in., respectively, h=0.2m,Hg=133,000Nm3. Assume inviscid, incompressible, steady flow, and velocity distribution at every cross section is uniform. What is the velocity in the upstream pipe?
