Question: ( 2 5 points ) Consider the circuit below. a . Determine V 0 in the circuit. ( Answer: V o = 1 2 V

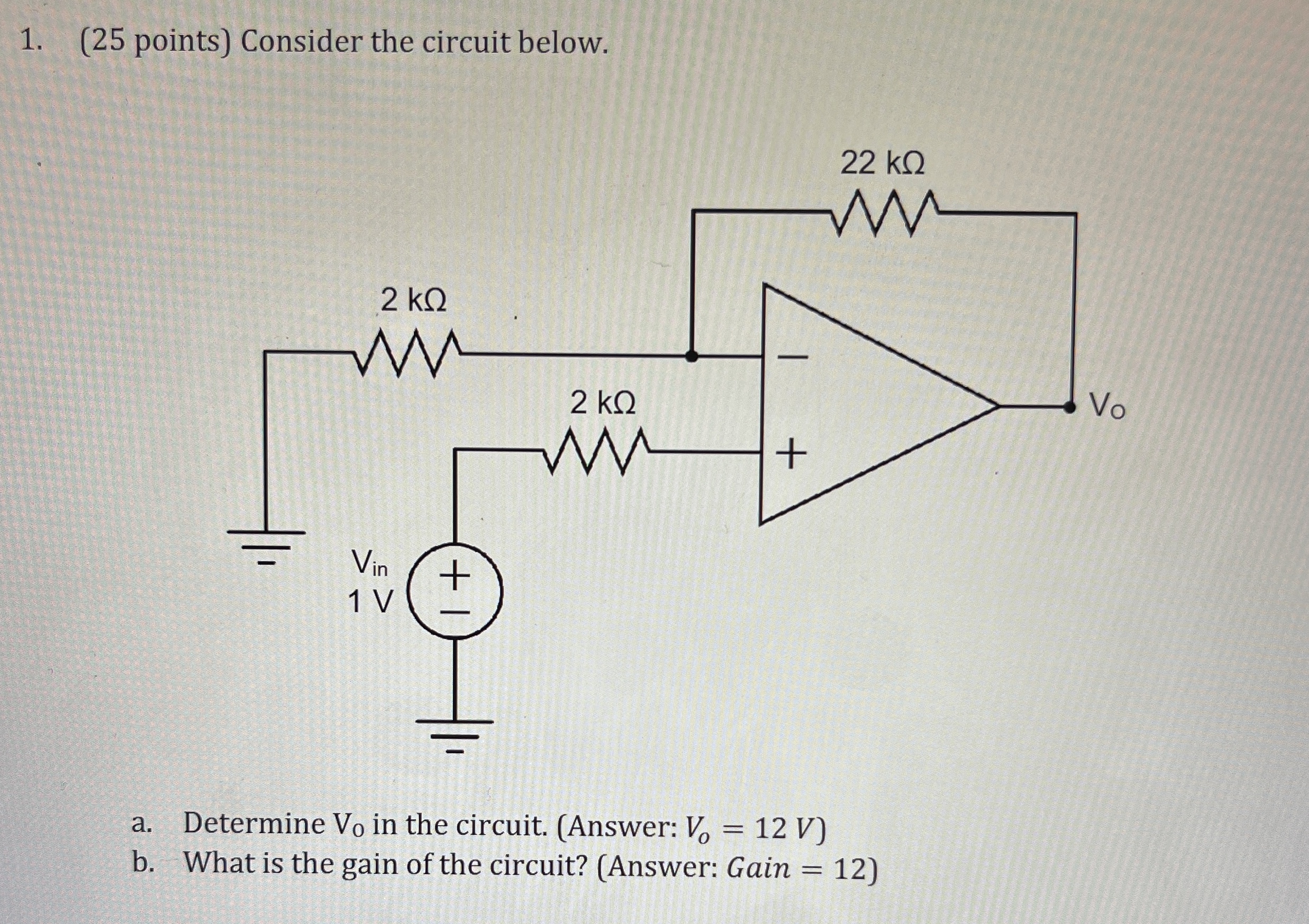

(25 points) Consider the circuit below.
a. Determine V0 in the circuit. (Answer: Vo=12V)
b. What is the gain of the circuit? (Answer: Gain =12)
( 2 5 points ) Consider the circuit below. a .

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
