Question: 2 5 pts . For the system shown, the force has a magnitude of 5 3 4 - N . Determine: a ) The moment

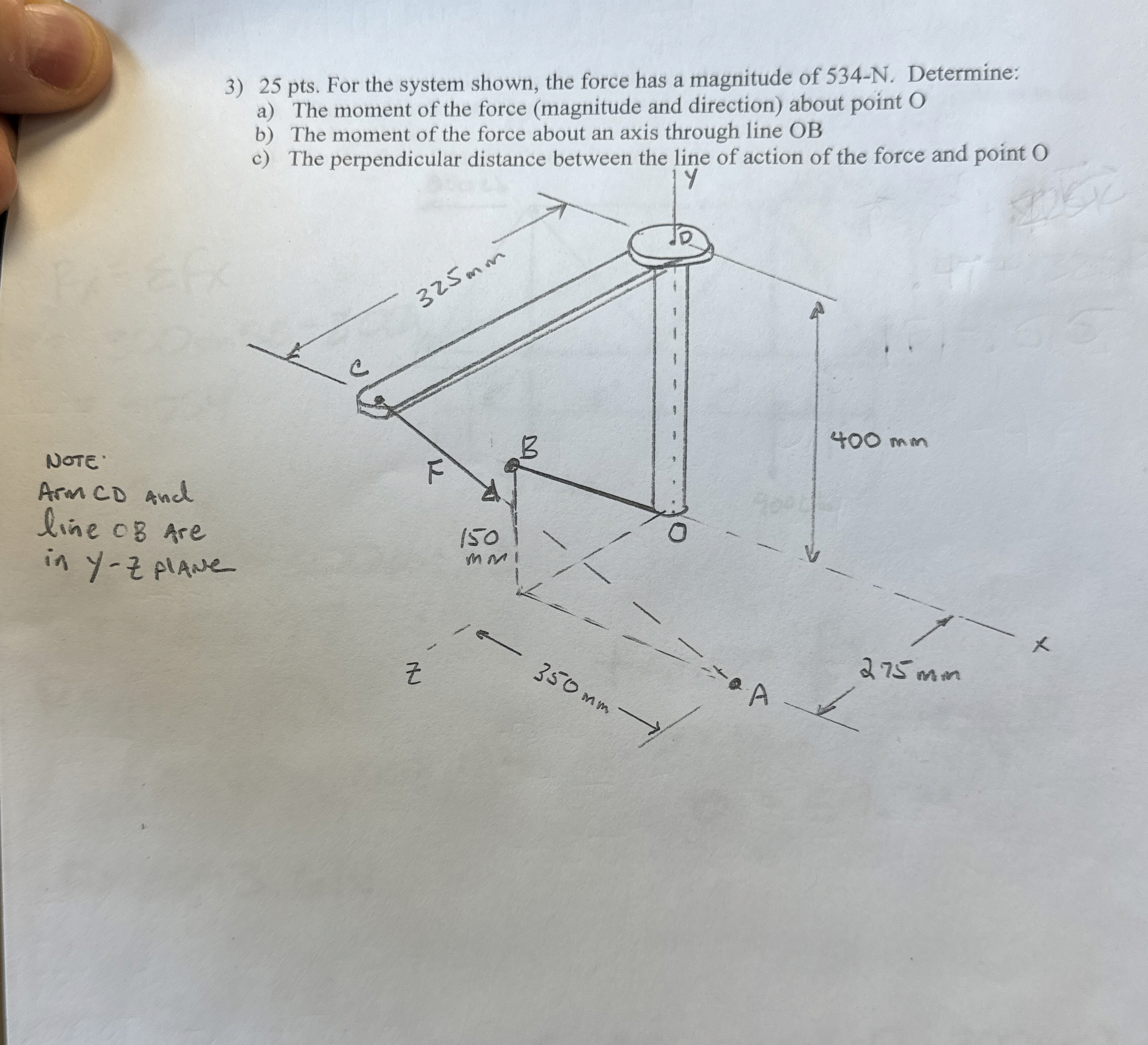

25 pts . For the system shown, the force has a magnitude of 534-N. Determine:
a) The moment of the force (magnitude and direction) about point O
b) The moment of the force about an axis through line OB
NOTE.
Arm CD and line OB As in y-z plAne
2 5 pts . For the system shown, the force has a

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
