Question: System is static For all questions, consider the system shown below. 1) Determine the magnitude of the force of pin E acting on member DCE.

System is static

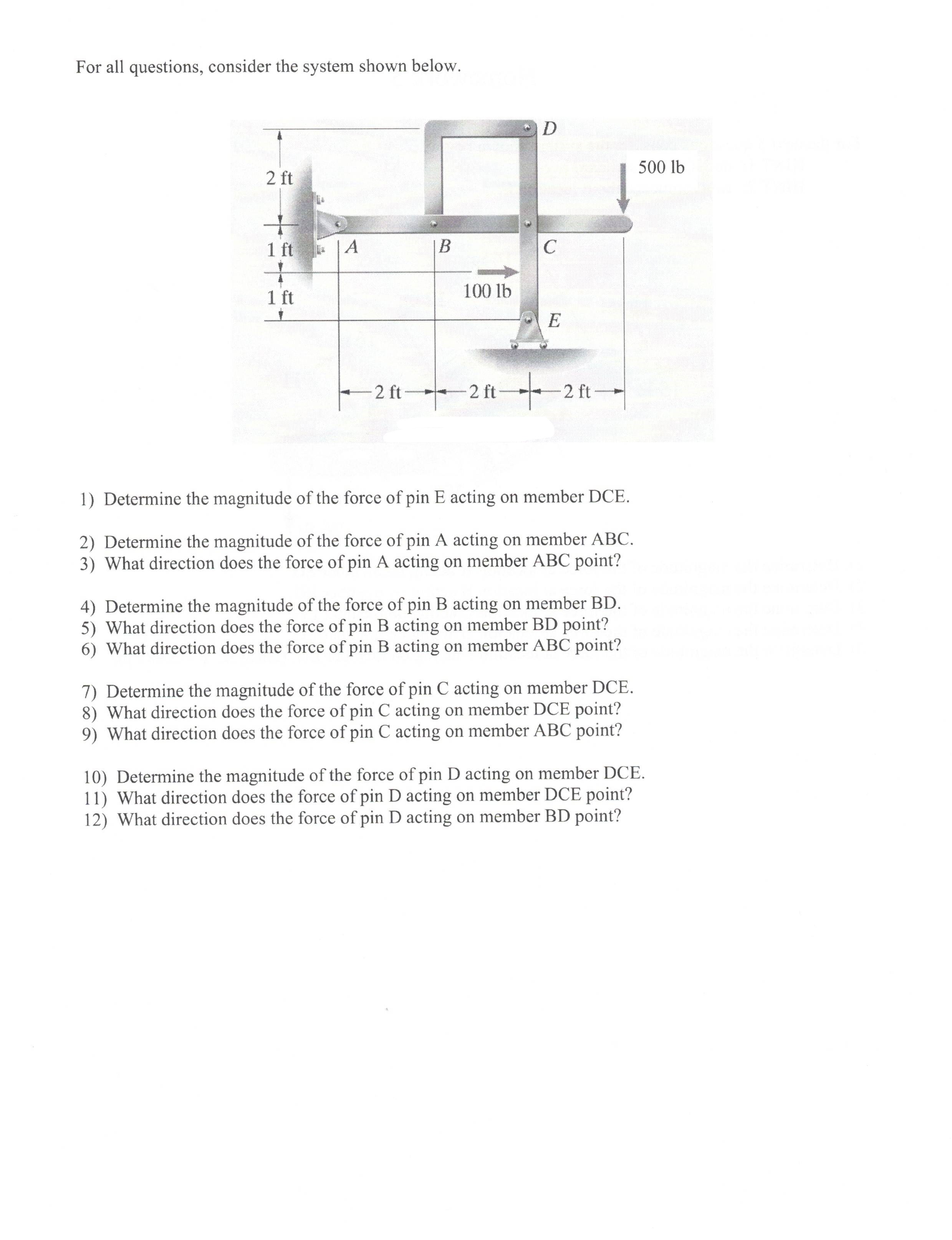

For all questions, consider the system shown below. 1) Determine the magnitude of the force of pin E acting on member DCE. 2) Determine the magnitude of the force of pin A acting on member ABC. 3) What direction does the force of pin A acting on member ABC point? 4) Determine the magnitude of the force of pin B acting on member BD. 5) What direction does the force of pin B acting on member BD point? 6) What direction does the force of pin B acting on member ABC point? 7) Determine the magnitude of the force of pin C acting on member DCE. 8) What direction does the force of pin C acting on member DCE point? 9) What direction does the force of pin C acting on member ABC point? 10) Determine the magnitude of the force of pin D acting on member DCE. 11) What direction does the force of pin D acting on member DCE point? 12) What direction does the force of pin D acting on member BD point

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
