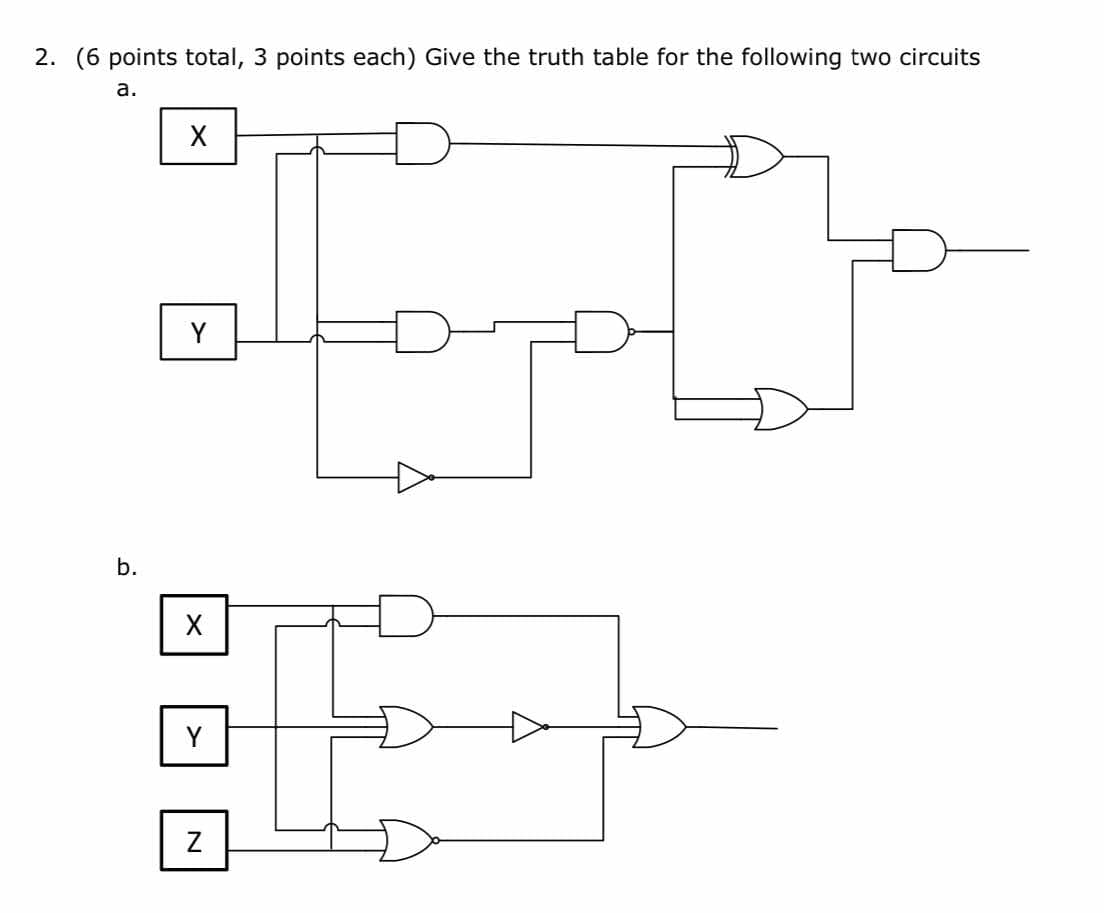

Question: 2 . ( 6 points total, 3 points each ) Give the truth table for the following two circuits a . Please add the final

2.(6 points total, 3 points each) Give the truth table for the following two circuits a. Please add the final boolean expression along with the truthtables
2 . ( 6 points total, 3 points each ) Give the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
