Question: * 2 7 . For the parallel resonant circuit in Fig. 2 1 . 6 3 : a . Determine the resonant frequency. b .

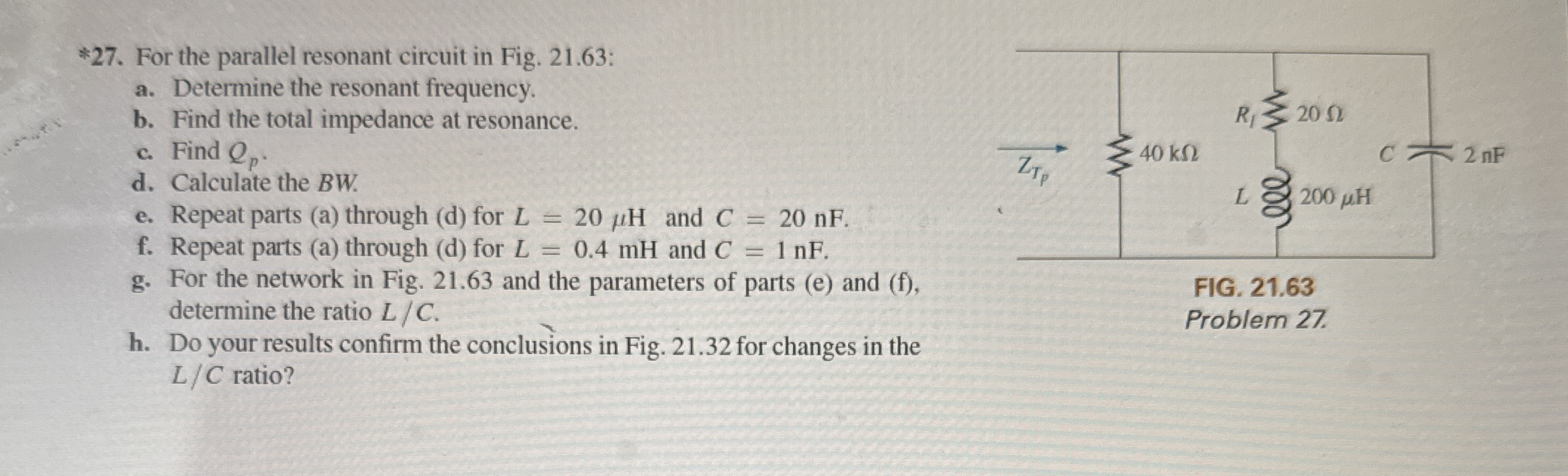

*27. For the parallel resonant circuit in Fig. 21.63:
a. Determine the resonant frequency.
b. Find the total impedance at resonance.
c. Find Qp.
d. Calculate the BW.
e. Repeat parts (a) through (d) for L=20H and C=20nF.
f. Repeat parts (a) through (d) for L=0.4mH and C=1nF.
g. For the network in Fig. 21.63 and the parameters of parts (e) and (f), determine the ratio LC.
h. Do your results confirm the conclusions in Fig. 21.32 for changes in the L/C ratio?
* 2 7 . For the parallel resonant circuit in Fig.
