Question: 2 - 8 6 . Determine the angle between the pipe segments B A and B C . Probs. 2 - 8 4 / 8

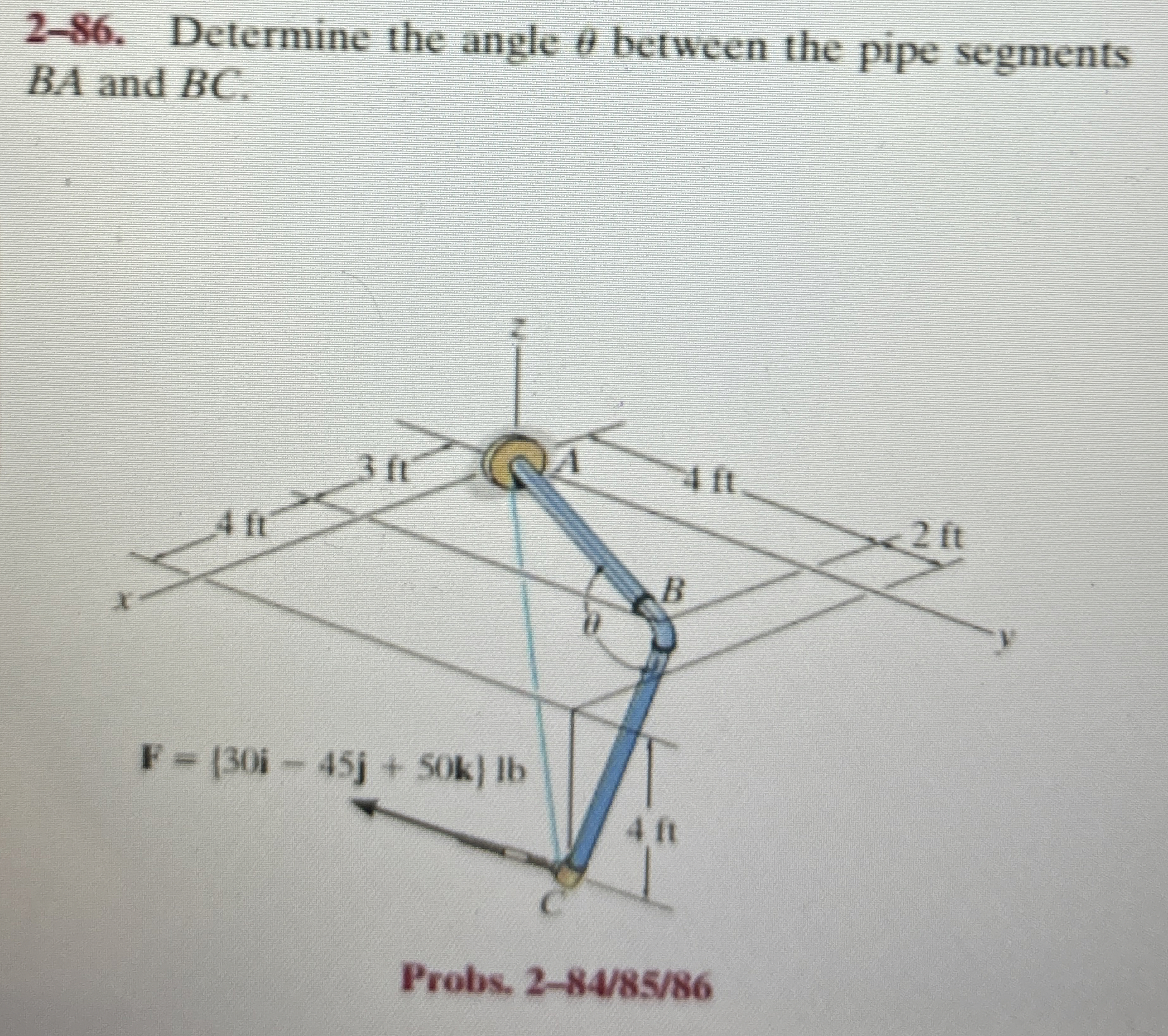

2-86. Determine the angle between the pipe segments
BA and BC.
Probs. 2-84/85/86
2 - 8 6 . Determine the angle between the pipe

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
